Unknown Chairside
Pacific Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Pacific Radio Corp.; Chicago, IL
- Year
- 1937 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 326312
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 110 VAC Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Unknown Chairside - Pacific Radio Corp.; Chicago,
- Shape

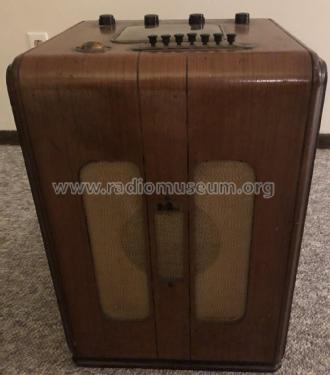

- Console: Chairside Radio.
- Dimensions (WHD)
- 15 x 21 x 15 inch / 381 x 533 x 381 mm
- Notes
-
The manufacturer of this radio is not known with certainty although the dial has a Pacific Radio logo. The tubes also match other Pacific Radio models from this time period. There also are later Pacific Radio chairside models that use different tubes but have a similar cabinet such as the P14H1.
- Author
- Model page created by Kevin Groves. See "Data change" for further contributors.
