• Country
• Switzerland

• Manufacturer / Brand
• Paillard AG; St. Croix

• Year
• 1947/1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 13020

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH21 ECH21 EBL21 AZ21

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch

• Material
• Wooden case

• from Radiomuseum.org

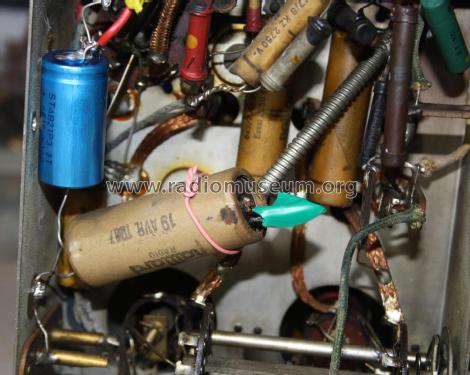

• Model: 2201B - Paillard AG; St. Croix

• Dimensions (WHD)
• 466 x 281 x 197 mm / 18.3 x 11.1 x 7.8 inch

• Notes
• Servicefreundlicher Anschluß des LS mit einem 4 poligen Stecker.

• Price in first year of sale
• 425.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Thali-Schemasammlung und Tungsram-Röhrenbestückung.
