Paillard AG; St.: 423 [Radio] ID = 21286 933x583
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1941/1942 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 4: ECH4 EBF2 ECL11 80 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 470 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-250 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out | |
| from Radiomuseum.org | Model: 423 - Paillard AG; St. Croix |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 490 x 280 x 210 mm / 19.3 x 11 x 8.3 inch |
| Notes | Die Frontblende ist aus braun lackiertem Metall. |
| Net weight (2.2 lb = 1 kg) | 10.8 kg / 23 lb 12.6 oz (23.789 lb) |
| Price in first year of sale | 338.00 SFr |
| External source of data | E. Erb 3-907007-36-0 |
| Source of data | Radiokatalog Band 2, Ernst Erb |

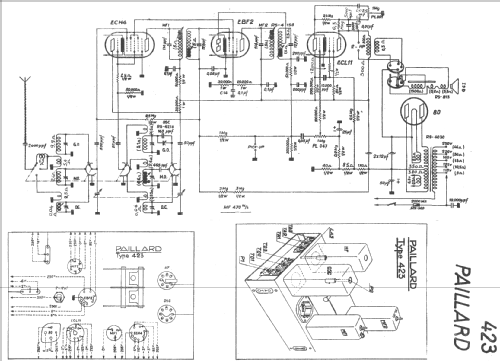

| Circuit diagram reference | Thali-Schemasammlung und Tungsram-Röhrenbestückung. |
