For model 426, Paillard AG; St. Croix

Country:  Switzerland
Manufacturer / Brand:  Paillard AG; St. Croix
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH4 EBF2 ECL11 80 EM4
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 426 - Paillard AG; St. Croix
Material Wooden case
Dimensions (WHD) 510 x 300 x 220 mm / 20.1 x 11.8 x 8.7 inch
Net weight (2.2 lb = 1 kg) 13.2 kg / 29 lb 1.2 oz (29.075 lb)
Price in first year of sale 445.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

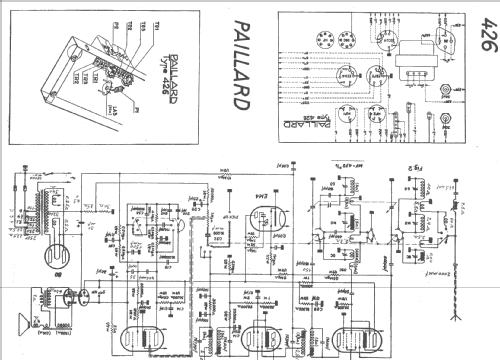

Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
