426G

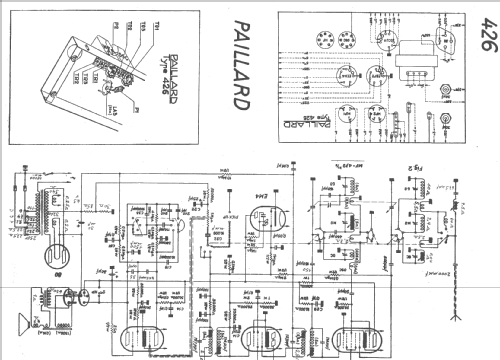

426G; Paillard AG; St. (ID = 15362) Radio
426G; Paillard AG; St. (ID = 806099) Radio 426G; Paillard AG; St. (ID = 806100) Radio
Use red slider bar for more.

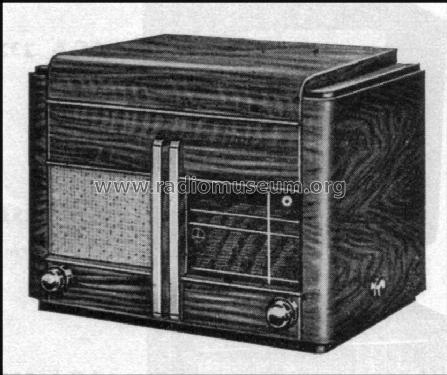

426G; Paillard AG; St. (ID = 806099) Radio
Paillard AG; St.: 426G [Radio] ID = 806099 835x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 426G, Paillard AG; St. Croix:
Revue suisse « Radio Service » No.9-10, Septembre-Octobre 1941

Country:  Switzerland
Manufacturer / Brand:  Paillard AG; St. Croix
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH4 EBF2 ECL11 80 EM4
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 426G - Paillard AG; St. Croix
Material Wooden case
Dimensions (WHD) 510 x 380 x 350 mm / 20.1 x 15 x 13.8 inch
Price in first year of sale 665.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
