426MC

426MC; Paillard AG; St. (ID = 15360) Radio
Use red slider bar for more.
426MC; Paillard AG; St. (ID = 15360) Radio

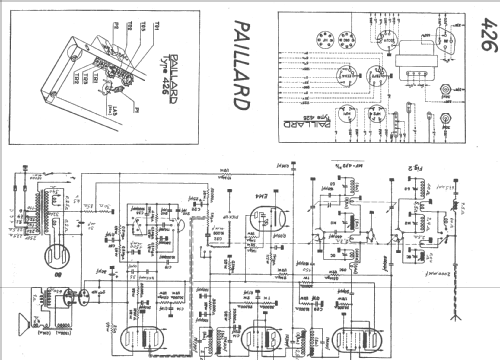

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Switzerland
Manufacturer / Brand:  Paillard AG; St. Croix
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH4 EBF2 ECL11 80 EM4
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 426MC - Paillard AG; St. Croix
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 620 x 820 x 380 mm / 24.4 x 32.3 x 15 inch
Price in first year of sale 995.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
