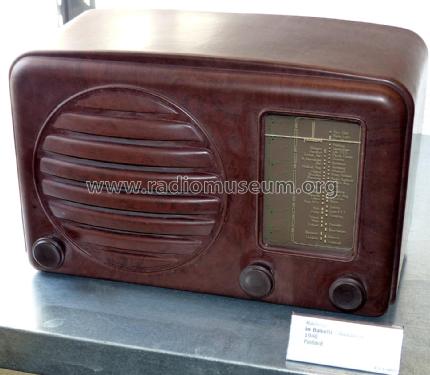

Paillard AG; St.: 441 [Radio] ID = 2007156 1400x1220
Select picture or schematic to display from thumbnails on the right and click for download.
For model 441, Paillard AG; St. Croix:
Gerät steht im EBM-Elektrizitätsmuseum (Elektra Birseck Münchenstein).

Country:  Switzerland
Manufacturer / Brand:  Paillard AG; St. Croix
Year: 1943–1945 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH21 UCH21 UBL21 UY21 or UY1
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 110/220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 441 - Paillard AG; St. Croix
Material Bakelite case
Dimensions (WHD) 316 x 200 x 165 mm / 12.4 x 7.9 x 6.5 inch
Net weight (2.2 lb = 1 kg) 5.3 kg / 11 lb 10.8 oz (11.674 lb)
Price in first year of sale 325.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
