• Year
  • 1943–1945
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 12970

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

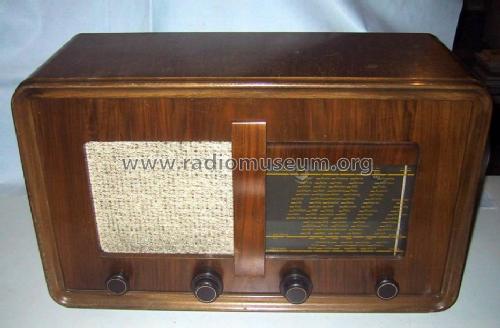

  • Model: 445 - Paillard AG; St. Croix
  • Dimensions (WHD)
  • 586 x 357 x 237 mm / 23.1 x 14.1 x 9.3 inch
  • Notes
  • statt EF6 auch EF22
  • Net weight (2.2 lb = 1 kg)
  • 13.8 kg / 30 lb 6.3 oz (30.396 lb)
  • Price in first year of sale
  • 635.00 SFr
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Thali-Schemasammlung und Tungsram-Röhrenbestückung.
