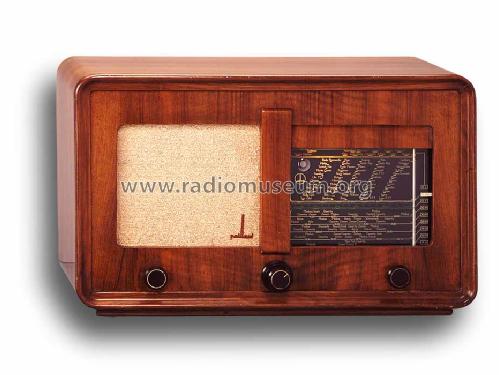

452; Paillard AG; St. (ID = 731878) Radio 452; Paillard AG; St. (ID = 135398) Radio
452; Paillard AG; St. (ID = 731880) Radio
Use red slider bar for more.
452; Paillard AG; St. (ID = 731875) Radio
Paillard AG; St.: 452 [Radio] ID = 731875 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 452, Paillard AG; St. Croix

Country:  Switzerland
Manufacturer / Brand:  Paillard AG; St. Croix
Year: 1944–1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH21 EBF2 EF22 EBL21 EM4 AZ21 or AZ11
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 145, 220, 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: 452 - Paillard AG; St. Croix
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 586 x 349 x 237 mm / 23.1 x 13.7 x 9.3 inch
Notes var.BBr. L - Abstimmung
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 695.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
