• Year
  • 1952/1953
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 13118

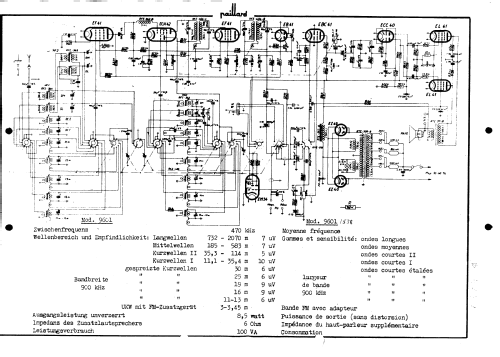

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 11
  • Main principle
  • Superhet with RF-stage; ZF/IF 470 kHz
  • Tuned circuits
  • 8 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 25 cm = 9.8 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 538-9601B - Paillard AG; St. Croix
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 720 x 453 x 330 mm / 28.3 x 17.8 x 13 inch
  • Notes
  • 6 x KW
  • Net weight (2.2 lb = 1 kg)
  • 22 kg / 48 lb 7.3 oz (48.458 lb)
  • Price in first year of sale
  • 1,125.00 SFr
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
