NF-Telefonrundspruch 53 (53Z)

NF-Telefonrundspruch 53 ; Paillard AG; St. (ID = 2292069) Wired-W
NF-Telefonrundspruch 53 ; Paillard AG; St. (ID = 2290843) Wired-W NF-Telefonrundspruch 53 ; Paillard AG; St. (ID = 2290844) Wired-W
NF-Telefonrundspruch 53 ; Paillard AG; St. (ID = 2290845) Wired-W NF-Telefonrundspruch 53 ; Paillard AG; St. (ID = 2290846) Wired-W
NF-Telefonrundspruch 53 ; Paillard AG; St. (ID = 2290847) Wired-W NF-Telefonrundspruch 53 ; Paillard AG; St. (ID = 2133) Wired-W
NF-Telefonrundspruch 53 ; Paillard AG; St. (ID = 2291327) Wired-W NF-Telefonrundspruch 53 ; Paillard AG; St. (ID = 2291331) Wired-W
NF-Telefonrundspruch 53 ; Paillard AG; St. (ID = 2291332) Wired-W NF-Telefonrundspruch 53 ; Paillard AG; St. (ID = 2291333) Wired-W
Use red slider bar for more.
NF-Telefonrundspruch 53 ; Paillard AG; St. (ID = 2290843) Wired-W
Paillard AG; St.: NF-Telefonrundspruch 53 [Wired-W] ID = 2290843 1094x1350
Select picture or schematic to display from thumbnails on the right and click for download.
For model NF-Telefonrundspruch 53 (53Z), Paillard AG; St. Croix:
Frontansicht

Country:  Switzerland
Manufacturer / Brand:  Paillard AG; St. Croix
Year: 1935–1938 Category: Wired Receiver (AF only)
Valves / Tubes 3: 56 2A3 80
Main principle Audio-Amplification; 2 AF stage(s)
Wave bands - without
Details Wired Wireless Receiver(AF only)
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: NF-Telefonrundspruch 53 - Paillard AG; St. Croix
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 350 x 400 x 220 mm / 13.8 x 15.7 x 8.7 inch
Notes

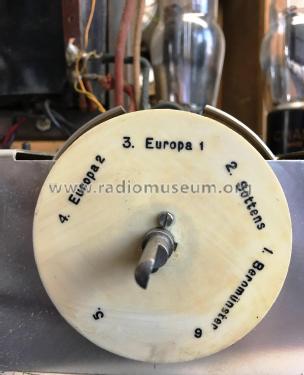

Commutateur Zenith  (Z = Zenith-Wähler)

Siehe auch
NF-Telefonrundspruch 53N mit Normalwähler

NF-Telefonrundspruch 53b

NF-Telefonrundspruch 53c mit Programmwähler mit Motor und Stummschaltung.

Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 250.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
