Teleradio 560TR

Teleradio 560TR; Paillard AG; St. (ID = 15175) Radio

Teleradio 560TR; Paillard AG; St. (ID = 2566467) Radio

Teleradio 560TR; Paillard AG; St. (ID = 2566468) Radio

Teleradio 560TR; Paillard AG; St. (ID = 2566469) Radio
Use red slider bar for more.
Teleradio 560TR; Paillard AG; St. (ID = 15175) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Switzerland
Manufacturer / Brand:  Paillard AG; St. Croix
Year: 1936–1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 58 2A7 58 2A6 2A5 80
Main principle Superhet with RF-stage; ZF/IF 120 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details Wired Wireless Receiver(AF only)
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Teleradio 560TR - Paillard AG; St. Croix
Material Wooden case
Dimensions (WHD) 480 x 450 x 290 mm / 18.9 x 17.7 x 11.4 inch
Notes mit TR!
Net weight (2.2 lb = 1 kg) 15.5 kg / 34 lb 2.3 oz (34.141 lb)
Price in first year of sale 425.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

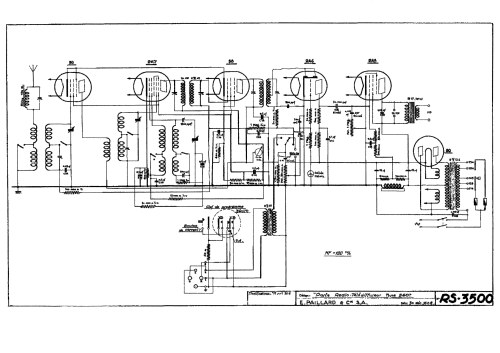

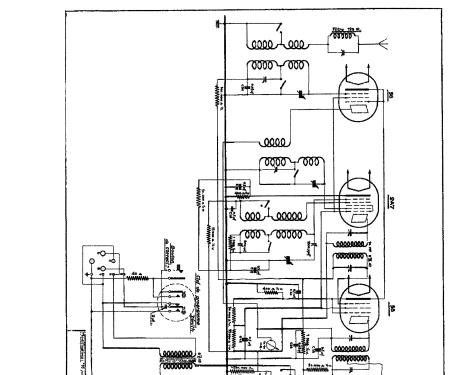

Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.


All listed radios etc. from Paillard AG; St. Croix
Here you find 541 models, 252 with images and 299 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
