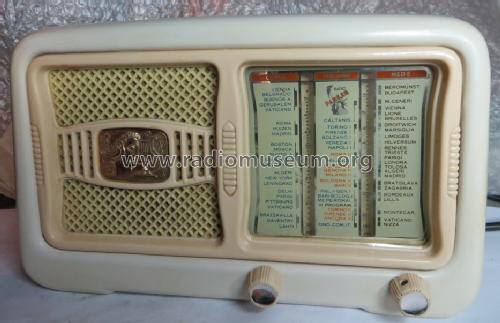

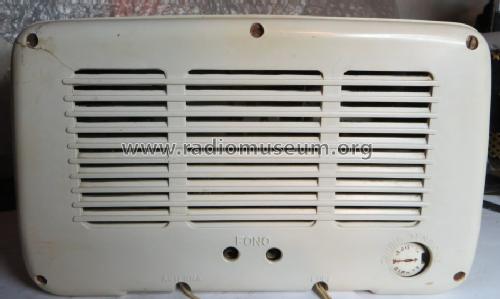

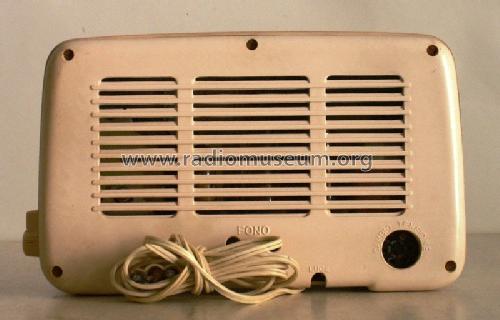

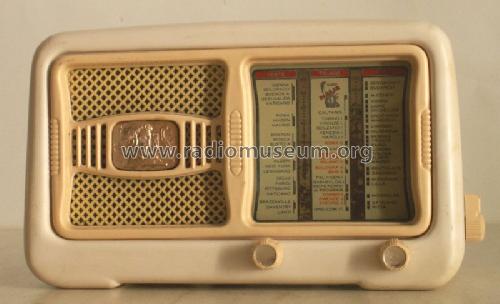

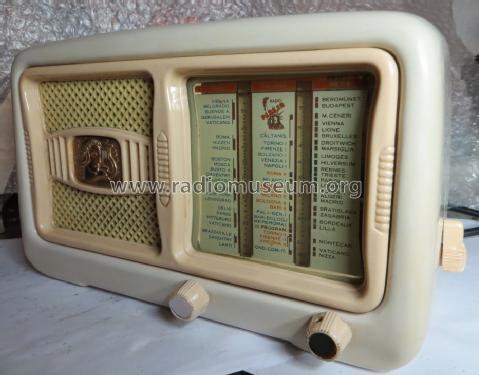

For model 136, Parker (Radio Parker); Viareggio

Country:  Italy
Manufacturer / Brand:  Parker (Radio Parker); Viareggio
Year: 1958 ? Category: Broadcast Receiver - or past WW2 Tuner

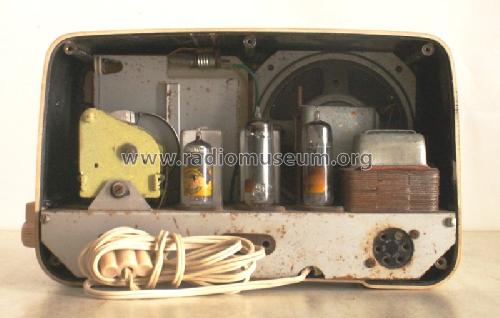

Valves / Tubes 5: 6BE6 6BA6 6AT6 6AQ5 6X4
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110: 125: 140: 160: 220: 280 Volt

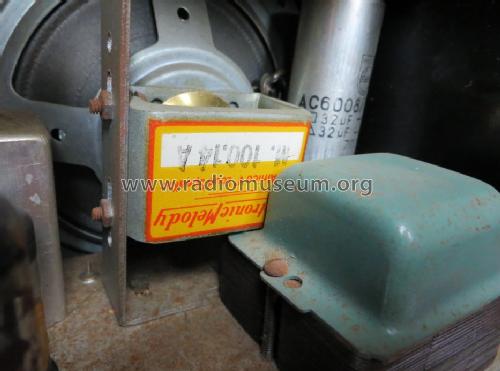

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 100 cm = 39.4 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: 136 - Parker Radio Parker; Viareggio
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 250 x 150 x 120 mm / 9.8 x 5.9 x 4.7 inch
Notes Commutazione di banda laterale.
Net weight (2.2 lb = 1 kg) 2.6 kg / 5 lb 11.6 oz (5.727 lb)
Source of data - - Data from my own collection

Model page created by Enrico Puccini. See "Data change" for further contributors.
