• Country
• France

• Manufacturer / Brand
• Marconi (marque), Cie. Fse. du Gramophone; Paris

• Year
• 1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 141077

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EAF42 EAF42 6AQ5 EM34 GZ40

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

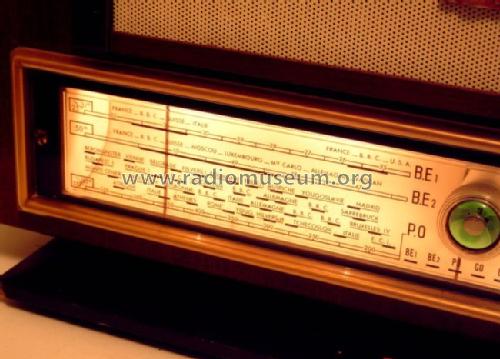

• Model: 653 - Marconi marque, Cie. Fse. du

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 365 x 265 mm / 20.5 x 14.4 x 10.4 inch

• Notes
• Pathé-Marconi 653. Drehbare Ferritantenne. Gespreizte KW-Bänder 25m, 31m, 49m.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Other Models

• Here you find 97 models, 77 with images and 30 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
