168

168 ; Patterson Radio Corp (ID = 645282) Radio
Use red slider bar for more.
168 ; Patterson Radio Corp (ID = 645282) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Patterson Radio Corp.; Los Angeles
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6K7 6A8 6K7 6Q7 6G5 6V6G
Main principle Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 168 - Patterson Radio Corp.; Los
Notes Covers 550 kHz to 18 MHz in 4 bands. Tuning eye. Self-rectifying vibrator. Voltage stabilizer. 6Q7 uncertain.
External source of data Ernst Erb

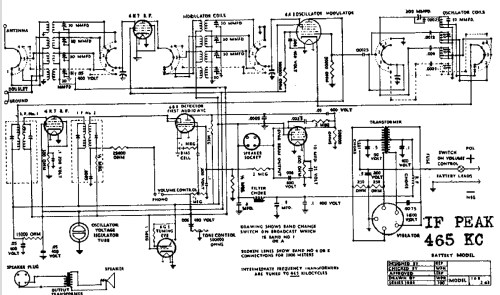

Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Rider's 9-3, 9-5, 8-6


All listed radios etc. from Patterson Radio Corp.; Los Angeles
Here you find 111 models, 43 with images and 66 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
