79B Ch= 77B

79B Ch= 77B; Patterson Radio Corp (ID = 649843) Radio
79B Ch= 77B; Patterson Radio Corp (ID = 1630331) Radio 79B Ch= 77B; Patterson Radio Corp (ID = 1630332) Radio
Use red slider bar for more.
79B Ch= 77B; Patterson Radio Corp (ID = 1630331) Radio

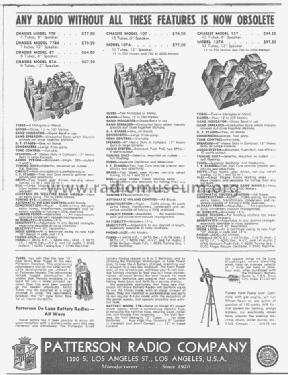

Patterson Radio Corp: 79B Ch= 77B [Radio] ID = 1630331 725x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model 79B Ch= 77B, Patterson Radio Corp.; Los Angeles

Country:  United States of America (USA)
Manufacturer / Brand:  Patterson Radio Corp.; Los Angeles
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6S7 6A8 6S7 6S7 6G5 6B8 6K6
Main principle Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Storage and/or dry batteries / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: 79B Ch= 77B - Patterson Radio Corp.; Los
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 22 x 37 x 12 inch / 559 x 940 x 305 mm
Notes

It is equipped with a tuning eye tube and vibrator for B+. It was advertised as being "climate proof," with all transformers, coils, and condensers (capacitors) vacuum impregnated. A high fidelity switch broadens the response curves of the intermediate frequency transformers.

Price in first year of sale 99.50 USD
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Rider's 9-1
