• Year
  • 1958/1959
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 21905
    • alternative name: Klang-Technik Böthner & Co.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 4 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

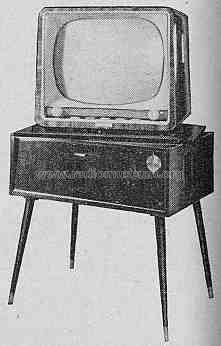

  • Model: Cocktail Ch= Luna - Pawerphon, Werner & Röttger;
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 720 x 700 x 550 mm / 28.3 x 27.6 x 21.7 inch
  • Notes
  • Rundfunk-Chassis = Loewe Opta Luna;
    Phono-Chassis = Philips Mignon.
  • Net weight (2.2 lb = 1 kg)
  • 20 kg / 44 lb 0.8 oz (44.053 lb)
  • Price in first year of sale
  • 559.00 DM
  • External source of data
  • Erb
