Faras 110; Pawerphon, Werner & (ID = 19474) Radio
Pawerphon, Werner &: Faras 110 [Radio] ID = 19474 311x595
Select picture or schematic to display from thumbnails on the right and click for download.
For model Faras 110, Pawerphon, Werner & Röttger, Berlin SO 36

Country:  Germany
Manufacturer / Brand:  Pawerphon, Werner & Röttger, Berlin SO 36
alternative name

Klang-Technik Böthner & Co.
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: DK96 DF96 DF96 DL96 DM70
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 75+1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Faras 110 - Pawerphon, Werner & Röttger,
Material Metal case
Dimensions (WHD) 100 x 160 x 100 mm / 3.9 x 6.3 x 3.9 inch
Notes Fahrrad-Empfänger!
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Price in first year of sale 126.00 DM
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Funkgeschichte der GFGF (9504")


All listed radios etc. from Pawerphon, Werner & Röttger, Berlin SO 36
Here you find 202 models, 146 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Pawerphon, Werner &: Faras 110
Threads: 1 | Posts: 1
Hits: 2006     Replies: 0
pawerphon: 110; Faras
Antonio Maida
12.Jun.07

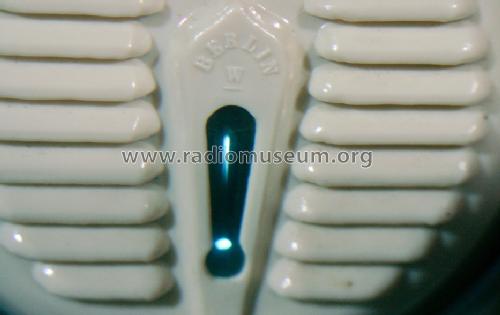

  1 Questa radio, in contenitore metallico in forma di fanale, era costruita per esere montata sul manubrio delle biciclette, sulla canna veniva fissata una borsetta che conteneva le due batterie, però poteva anche esere staccata per utilizzarla altrove. Sotto l'indicatore di sintonia vi è un foro dove veniva inserita una chiavetta per l'accensione. Il modello della mia collezione era costruto dalla FARAS ed esportata in Venezuela.
