For model 1044, Peabody & Cia., Henry W.; Buenos Aires

Country:  Argentina
Manufacturer / Brand:  Peabody & Cia., Henry W.; Buenos Aires
Year: 1952 ?? Category: Broadcast Receiver - or past WW2 Tuner

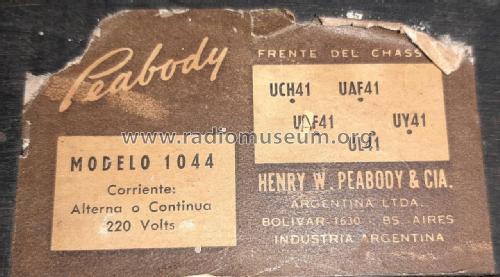

Valves / Tubes 5: UCH41 UAF41 UAF41 UL41 UY41
schematic requested
Main principle Super-Heterodyne (Super in general); ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: 1044 - Peabody & Cia., Henry W.;

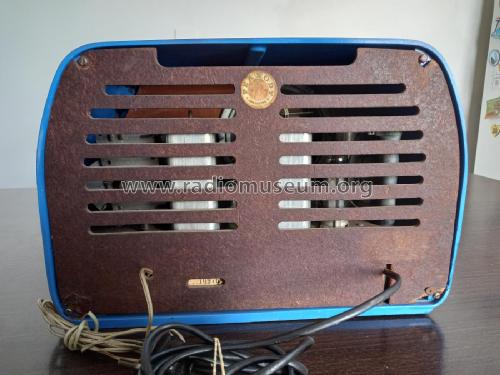

Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 310 x 200 x 180 mm / 12.2 x 7.9 x 7.1 inch
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)

Model page created by Heriberto Tavella. See "Data change" for further contributors.
