Piccadilly 7 Transistor PR 721 with OC81

Piccadilly 7 Transistor PR 721; Perdio Electronics (ID = 365609) Radio

Piccadilly 7 Transistor PR 721; Perdio Electronics (ID = 585255) Radio
Piccadilly 7 Transistor PR 721; Perdio Electronics (ID = 350596) Radio Piccadilly 7 Transistor PR 721; Perdio Electronics (ID = 350597) Radio
Piccadilly 7 Transistor PR 721; Perdio Electronics (ID = 350598) Radio Piccadilly 7 Transistor PR 721; Perdio Electronics (ID = 2162328) Radio
Piccadilly 7 Transistor PR 721; Perdio Electronics (ID = 2374786) Radio
Use red slider bar for more.
Piccadilly 7 Transistor PR 721; Perdio Electronics (ID = 350596) Radio
Perdio Electronics: Piccadilly 7 Transistor PR 721 [Radio] ID = 350596 933x654
Select picture or schematic to display from thumbnails on the right and click for download.
For model Piccadilly 7 Transistor PR 721 with OC81, Perdio Electronics Ltd.; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Perdio Electronics Ltd.; London
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC44 OC45 OC45 OC71 OC81D OC81 OC81
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out 0.24 W (unknown quality)
from Radiomuseum.org Model: Piccadilly 7 Transistor PR 721 [with OC81] - Perdio Electronics Ltd.;
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 6 x 4 x 1.75 inch / 152 x 102 x 44 mm
Notes Please note: there is no Piccadilly PR7 (misinterpreted service paper).

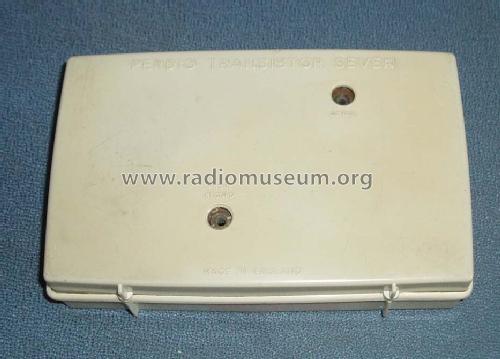

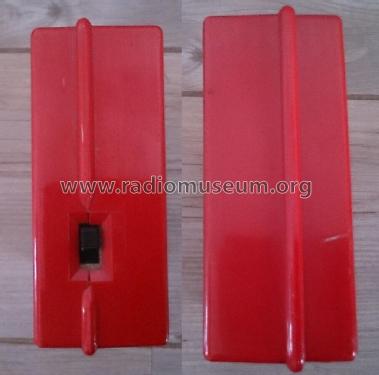

Colors available: blue or grey or red. Same chassis and schematic used in Piccadilly, Londoner, Park Lane and Super-7. Sockets for external aerial and earphone.
Thereis also a variant with different Transistor lineup.
Net weight (2.2 lb = 1 kg) 0.6 kg / 1 lb 5.1 oz (1.322 lb)
Literature/Schematics (1) P.Stenning CD

Model page created by Hamish Galloway. See "Data change" for further contributors.



All listed radios etc. from Perdio Electronics Ltd.; London
Here you find 56 models, 45 with images and 39 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
