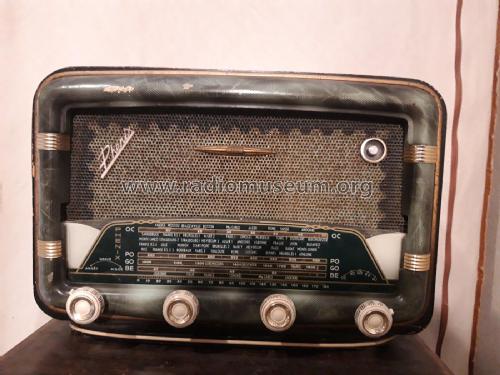

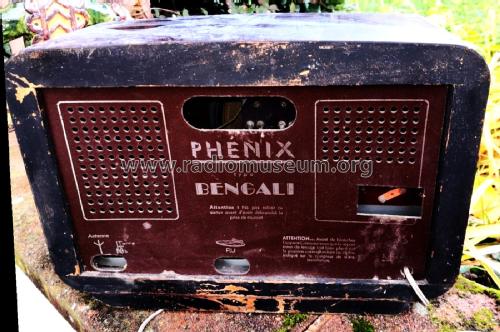

Le Bengali AZ41
Phénix, Lavalette-Phénix; Saint-Maur, Paris
- Country
- France
- Manufacturer / Brand
- Phénix, Lavalette-Phénix; Saint-Maur, Paris
- Year
- 1954 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 241393
vom Flohmarkt in Frankreich
ebay.fr/itm/255910077450
ebay.fr/itm/255910077450
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch
- Power out
- 3.9 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Le Bengali [AZ41] - Phénix, Lavalette-Phénix;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 385 x 255 x 190 mm / 15.2 x 10 x 7.5 inch
- Notes
-
4 gammes d'ondes dont OC 20 à 50 m et OC étalées 47 à 50 m. Prise pick-up. Cadran miroir.
Coffret peinte au styles différents.
Existe aussi en version utilisent redresseur EZ80.
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- Le grand livre de la TSF (Doctsf Ref 24884)
