• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 50471

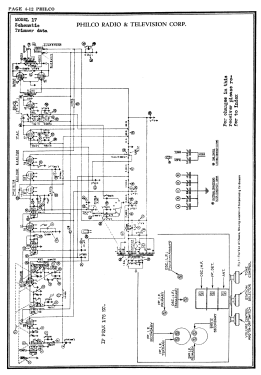

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 78 6A7 78 37 37 78 77 42 42 42 5Z3

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz

• Wave bands
• Broadcast (MW), Police, sometimes also early TV (75-200m).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 17LS - Philco, Philadelphia Stg. Batt

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• The model 17 series was similar to the model 18 series of high-end multiband receivers, but had only two bands (BC and 1.5 - 4 MHz) and fewer cabinet styles. It was also less popular and was sold for a shorter time than the model 18 series. Like the model 18 series, the 17 series had shadow meters (tuning aid) and QAVC ("quite automatic volume control"), a squelch circuit to quiet noise between stations.

  There were six models in the series: Model 17B (1934-34) was a cathedral. Model 17L (1933) was the earlier of two lowboys, with four mostly vertical bars through the speaker grill. Model 17LS (1933-34) was the later more ornate lowboy, with four narrow vertical bars at the sides of the speaker grill, along with other embellishments. Ramirez mentions that some model 17LS radios are incorrectly labeled as "17B." Model 17D (1933) was a highboy with doors. Model 17RX was a chairside with separate large speaker cabinet. Model 17XS (1933-34) was a floor-type console with inclined sounding board.

  The chassis used in the 17B cathedral used a type 80 rectifier, while those used in other less compact models used a 5Z3. There was a version of the chassis designed for 25-40 Hz power, and these chassis are marked as "17A" (with the -A being a chassis suffix, not to be confused with the suffix of the main model number, which designates cabinet style).

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 4 = ca. 1934 and before

• Mentioned in
• Philco Radio 1928-1942

• Literature/Schematics (1)

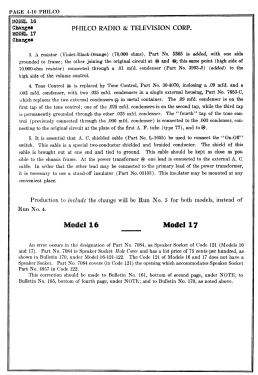

• Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data
