40-125C

• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 50642

• Picture
• Schematics

Previous Next

Previous Next

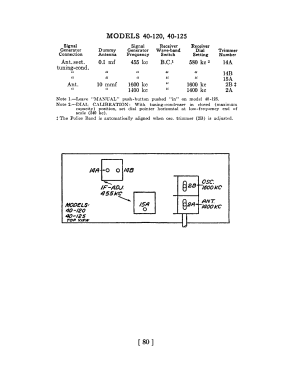

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 7C7 7A8 7B7 7C6 35A5 35Z3

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast (MW), Police, sometimes also early TV (75-200m).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 1 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 40-125C - Philco, Philadelphia Stg. Batt

• Shape

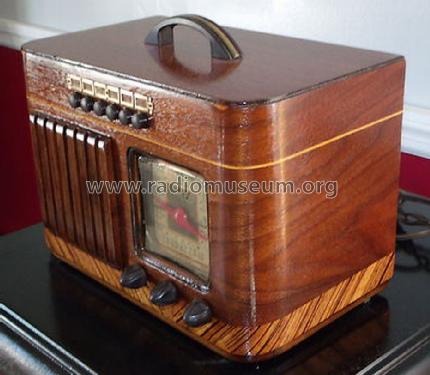

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 11 x 7.44 x 6.63 inch / 279 x 189 x 168 mm

• Notes

• Similar to model model 40-120C, but with six pushbuttons for automatic tuning.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Philco 1940 RMS Year Book

• Literature/Schematics (2)
• Machine Age to Jet Age II (page 215.)

• Literature/Schematics (3)
• Philco Folder PR-739, for 1940
