• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 50674

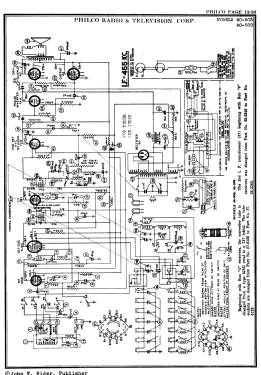

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 1232 6J8G 7B7 7C6 7A4 42 42 80

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 40-508P Radio-Phonograph - Philco, Philadelphia Stg. Batt

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 32.8 x 35 x 16 inch / 833 x 889 x 406 mm

• Notes
• Model 40-508P has an automatic record changer and pushbutton tuning.

• Price in first year of sale
• 140.00 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Mentioned in
• Philco Radio 1928-1942

• Literature/Schematics (1)
• Philco 1940 RMS Year Book

• Literature/Schematics (2)
• Pre-War Consoles

• Other Models
