59C Late

59C ; Philco, Philadelphia (ID = 491961) Radio

59C ; Philco, Philadelphia (ID = 491964) Radio

59C ; Philco, Philadelphia (ID = 536439) Radio
59C ; Philco, Philadelphia (ID = 2468017) Radio 59C ; Philco, Philadelphia (ID = 2468018) Radio
59C ; Philco, Philadelphia (ID = 2468015) Radio 59C ; Philco, Philadelphia (ID = 2468021) Radio
59C ; Philco, Philadelphia (ID = 2468019) Radio 59C ; Philco, Philadelphia (ID = 2468020) Radio
59C ; Philco, Philadelphia (ID = 198831) Radio 59C ; Philco, Philadelphia (ID = 198833) Radio
59C ; Philco, Philadelphia (ID = 198835) Radio 59C ; Philco, Philadelphia (ID = 1925368) Radio
Next  pictures
Use red slider bar for more.
59C ; Philco, Philadelphia (ID = 2468017) Radio
Philco, Philadelphia: 59C [Radio] ID = 2468017 1200x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model 59C Late, Philco, Philadelphia Stg. Batt. Co.; USA

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 77 77 42 80
Main principle Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 59C [Late] - Philco, Philadelphia Stg. Batt
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 11 x 0 x 0 inch / 279 x 0 x 0 mm
Notes Model 59C is a low cost 4-tube compact upright table radio, often referred to as a "pee-wee" or "cigar box" design because of its compactness. It is a continuation of a series of similar 4-tube models with different styles of compact cabinets, which included the 53C (1933), the 57C (1933), the 58C (1934). These 4-tube designs use regeneration in the IF amplifier to improve sensitivity. There are four versions of model 59: model 59C (early version, 1934) with vertical bars through the speaker opening and a photofinish front panel with faux inlay and burl patterns, model 59C (late version, 1935) with a wooden front and a wave pattern at the top of the speaker opening, model 59S (early version, 1934-35) with an "owl" pattern on the front panel, and model 59S (late version, 1935) with a spoked arch speaker opening.
Price in first year of sale 25.00 $
External source of data Ernst Erb

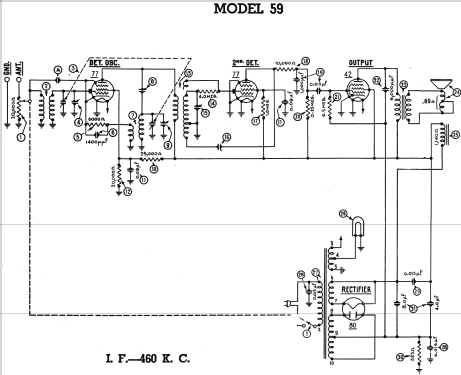

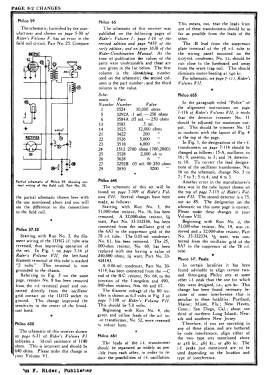

Circuit diagram reference Rider's Perpetual, Volume 5 = ca. 1934 and before
Mentioned in Philco Radio 1928-1942
Literature/Schematics (1) Philco Wiring Diagrams, Parts Lists, and Essential Serv. Data 1928-36; Philco Service Bulletin #192
