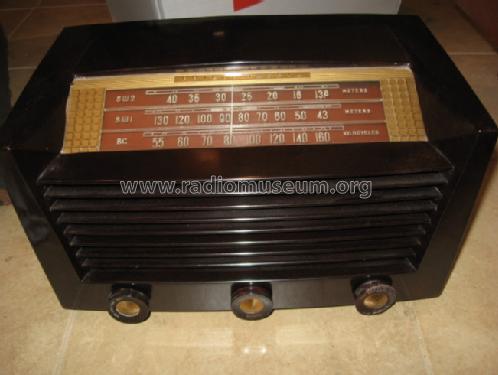

Tropic 3012 Code 121
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1950 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 189668
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 115; 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Tropic 3012 Code 121 - Philco, Philadelphia Stg. Batt
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 13 x 8 x 8 inch / 330 x 203 x 203 mm
- Notes
-
This Philco Tropic radio was produced for export, with components developed to operate also in problematic climate. It has 3 bands: BC and 2 short wave bands. There are 3 control knobs: on/off/vol, tuning, and band selection.
- Mentioned in
- L'antenna, n.9, settembre 1950
- Author
- Model page created by Jon Kummer. See "Data change" for further contributors.
