For model World's Fair 39-55RX, Philco, Philadelphia Stg. Batt. Co.; USA:
Philco 39-55RX

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: 6J8G 78 6Q7G 42 42 80 78 6J7G 6ZY5G 2A4G 30
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 10 W (unknown quality)
from Radiomuseum.org Model: World's Fair 39-55RX - Philco, Philadelphia Stg. Batt
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 29.5 x 38.4 x 14.6 inch / 749 x 975 x 371 mm
Notes

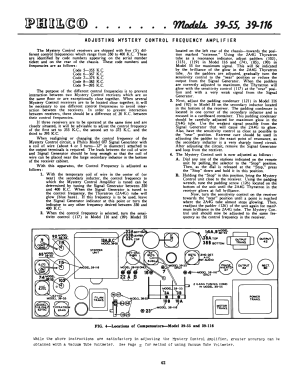

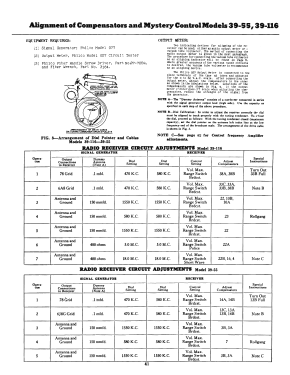

For the "World's Fair", Philco 39-55 one could buy the "Mystery Control" for wireless Electric Automatic Tuning of eight (8) BC stations, volume control, and switch off.

External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Philco Radio 1928-1942
Literature/Schematics (1) Collector's Guide to Antique Radios (5th edition) (Philco 1939 RMS Yearbook)
Literature/Schematics (2) Pre-War Consoles
Literature/Schematics (3) Philco Folder PR671 for 1939.
