41AA1

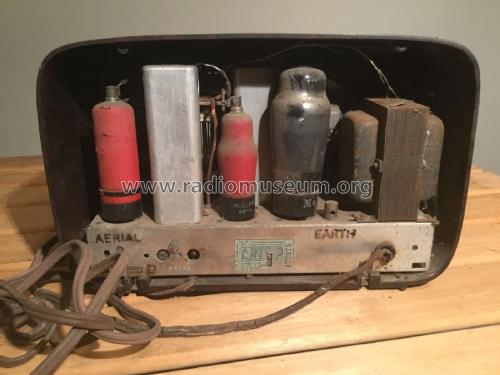

41AA1; Philco Radio & (ID = 1879978) Radio 41AA1; Philco Radio & (ID = 1879979) Radio
Use red slider bar for more.
41AA1; Philco Radio & (ID = 1879978) Radio
Philco Radio &: 41AA1 [Radio] ID = 1879978 900x602
Select picture or schematic to display from thumbnails on the right and click for download.
For model 41AA1, Philco Radio & Television Corp. (Aust) Pty. Ltd.:
Ebay #291547394312 Seller: phslater

Country:  Australia
Manufacturer / Brand:  Philco Radio & Television Corp. (Aust) Pty. Ltd.
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH33 or ECH35 EBF35 EL33A 6X5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 210; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 41AA1 - Philco Radio & Television Corp
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes This model is very similar if not identical to the Airzone model 4A1A1.
Circuit diagram reference Australian Official Radio Service Manual Vol. VII

Model page created by Stuart Irwin. See "Data change" for further contributors.
