47-40

Country:  Australia
Manufacturer / Brand:  Philco Radio & Television Corp. (Aust) Pty. Ltd.
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner

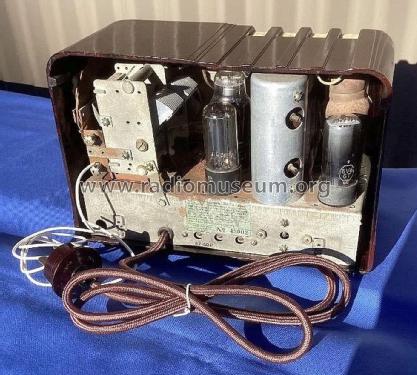

Valves / Tubes 4: 6A8G 6G8G 6V6GT 5Y3GT
Main principle Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s); Reflex
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 220-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 47-40 - Philco Radio & Television Corp

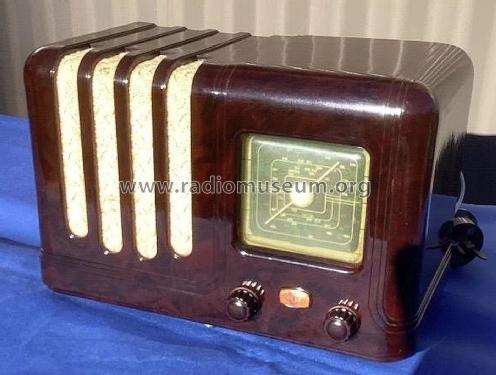

Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes Uses same case design as models 40-40, 41-40 and 46-40 (see).
Price in first year of sale 19.00 Aus£
Circuit diagram reference Australian Official Radio Service Manual Vol. VI

Model page created by Stuart Irwin. See "Data change" for further contributors.
