RF1001; Philips Italy; (ID = 255818) Radio
RF1001; Philips Italy; (ID = 747927) Radio RF1001; Philips Italy; (ID = 733123) Radio
RF1001; Philips Italy; (ID = 539357) Radio
Use red slider bar for more.
RF1001; Philips Italy; (ID = 747927) Radio
Philips Italy;: RF1001 [Radio] ID = 747927 448x601
Select picture or schematic to display from thumbnails on the right and click for download.
For model RF1001, Philips Italy; Milano (MI)
Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH4 EF6 EF9 EBL1 EM4 AZ1
Main principle Superheterodyne (common); ZF/IF 468 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 160, 170, 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Model: RF1001 - Philips Italy; Milano MI
Material Wooden case
Shape Console with any shape - in general
Notes Gamme d'onda: medie, corte, cortissime.
Price in first year of sale 4'000.00 LIT

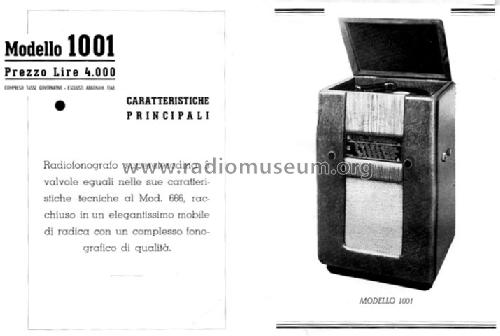

Source of data -- Original prospect or advert
Literature/Schematics (1) Il Radio Libro, (Ravalico) 8.Ed.

Model page created by Alessandro De Poi. See "Data change" for further contributors.

All listed radios etc. from Philips Italy; Milano (MI)
Here you find 370 models, 306 with images and 229 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
