15RB587 /01S

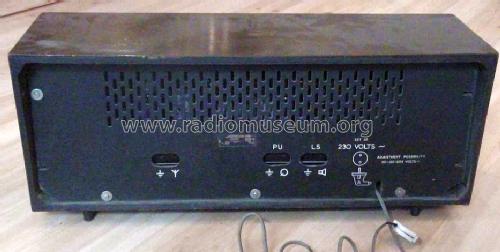

15RB587 /01S; Philips; Calcutta (ID = 899244) Radio 15RB587 /01S; Philips; Calcutta (ID = 899242) Radio
15RB587 /01S; Philips; Calcutta (ID = 899243) Radio 15RB587 /01S; Philips; Calcutta (ID = 899245) Radio
15RB587 /01S; Philips; Calcutta (ID = 2020427) Radio
Use red slider bar for more.
15RB587 /01S; Philips; Calcutta (ID = 899244) Radio
Philips; Calcutta: 15RB587 /01S [Radio] ID = 899244 933x518
Select picture or schematic to display from thumbnails on the right and click for download.
For model 15RB587 /01S, Philips; Calcutta

Country:  India
Manufacturer / Brand:  Philips; Calcutta
Year: 1968 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EF89 EBC81 EL84 EM84 EZ80
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 180; 205; 230 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 15RB587 /01S - Philips; Calcutta
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 600 x 240 x 210 mm / 23.6 x 9.4 x 8.3 inch
Notes

Chassis appears similar to model 15RB487.

The main differences are that the 15RB587 has 2 speakers (but still mono), a more refined wooden case, and last but not least: a unique dial-glass with station names. This model seems to be the only Philips radio made in India with (Indian) station names.

Model page created by Robert Kooijman. See "Data change" for further contributors.
