• Country
• Great Britain (UK)

• Manufacturer / Brand
• Philips Electrical, Lamps, Industrial - Miniwatt; London

• Year
• 1954

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 303059

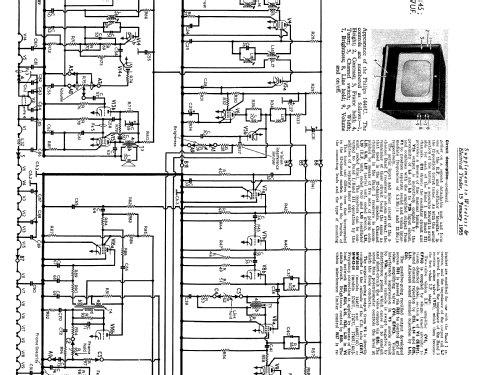

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• EF80 EF80 EF80 EF80 EB91 EF80 ECL80 ECL80 PL81 EY51 PY81 EF80 ECL80 EB91 PL82 ECL80 PL82 PY82 PY82 MW43-64

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 1746U /45 - Philips Electrical, Lamps,

• Shape
• Tablemodel, low profile (big size).

• Notes

• Table TV set with a 17 inch black and white 405 line CRT. 5 channel VHF GB band I tuner.

  Fringe model 1746UF /45 has the same chassis but is aligned differently.

• Literature/Schematics (1)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1181/T66)

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.

• Other Models

• Here you find 426 models, 302 with images and 285 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips Electrical, Lamps, Industrial - Miniwatt; London
