17CX102A-70

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1955

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 128604

• Picture

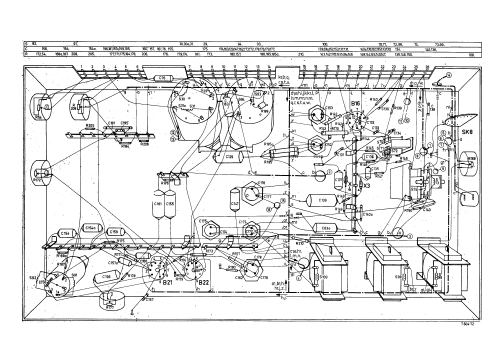

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• PCC84 PCF80 EF80 ECH81 EF80 PABC80 PL82 EF80 EF80 EF80 EF80 PL83 EF80 ECC82 ECL80 ECL80 PL81 PY81 DY86 ECL80 PL82 MW43-43

• Main principle
• Superheterodyne (common); ZF/IF - kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 17CX102A-70 - Philips; Eindhoven tubes

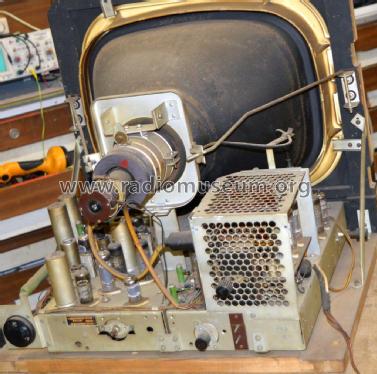

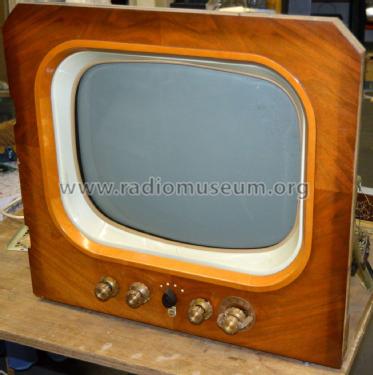

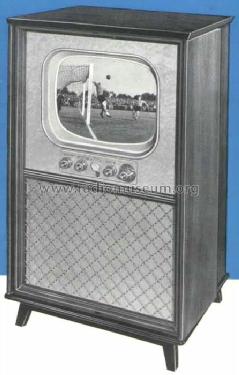

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 650 x 1060 x 530 mm / 25.6 x 41.7 x 20.9 inch

• Notes

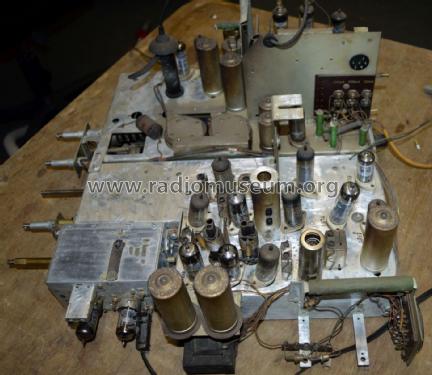

• 17" 43cm four standard b/w TV, VHF tuner with CCIR B channels 2 - 11; French channel F8+8a (Paris/Lille) + one reserve channel. Covers CCIR 625, belgium 625, belgium 819 and french 819 transmission standards.
  Loudspeaker type 9750-05.

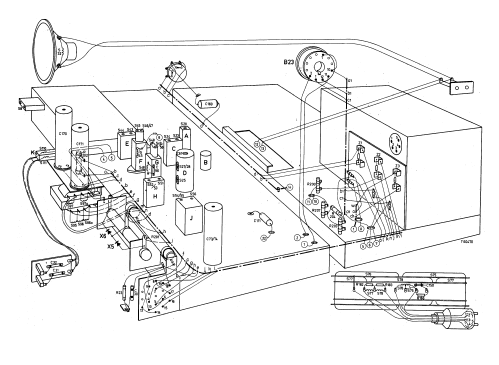

  Although schematic designates image tube as B23 there are only 22 valves (B15 missing).
  Image tube designated as MW43-69 on schematic is not correct - should be according to model-type since the chassis serves in different models with different image tube sizes.(see tubelist)


• Net weight (2.2 lb = 1 kg)
• 53 kg / 116 lb 11.8 oz (116.74 lb)

• Price in first year of sale
• 1,685.00 NLG

• Source of data
• -- Original prospect or advert

• Author
• Model page created by a member from A. See "Data change" for further contributors.
