17TX291A

17TX291A; Philips; Eindhoven (ID = 130289) Television

17TX291A; Philips; Eindhoven (ID = 130291) Television

17TX291A; Philips; Eindhoven (ID = 259682) Television

17TX291A; Philips; Eindhoven (ID = 259683) Television

17TX291A; Philips; Eindhoven (ID = 259685) Television

17TX291A; Philips; Eindhoven (ID = 259686) Television

17TX291A; Philips; Eindhoven (ID = 259687) Television

17TX291A; Philips; Eindhoven (ID = 259688) Television

17TX291A; Philips; Eindhoven (ID = 259689) Television

17TX291A; Philips; Eindhoven (ID = 259690) Television
17TX291A; Philips; Eindhoven (ID = 129874) Television 17TX291A; Philips; Eindhoven (ID = 129877) Television
17TX291A; Philips; Eindhoven (ID = 1318839) Television
Use red slider bar for more.
17TX291A; Philips; Eindhoven (ID = 129874) Television
Philips; Eindhoven: 17TX291A [Television] ID = 129874 500x392
Select picture or schematic to display from thumbnails on the right and click for download.
For model 17TX291A, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1960 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 20: PCC88 PCF80 PF86 EF183 EF184 EF80 ECH83 ECC82 PCL82 PCL84 PL84 PY88 PL36 DY87 AW43-88
Main principle Superheterodyne (common); 2 AF stage(s)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 17TX291A - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 455 x 385 x 360 mm / 17.9 x 15.2 x 14.2 inch
Notes Röhren einfach gelistet.
Documents regarding this model

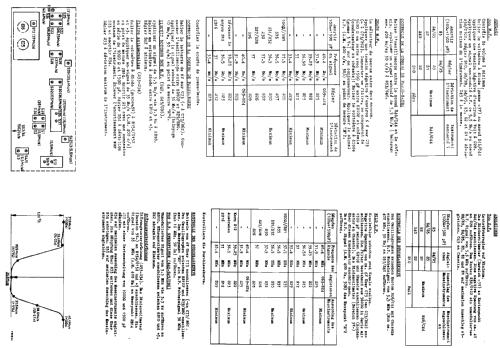

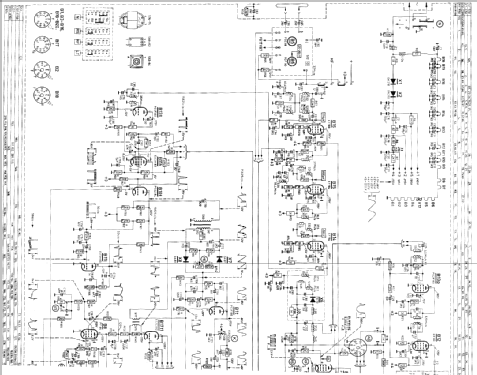

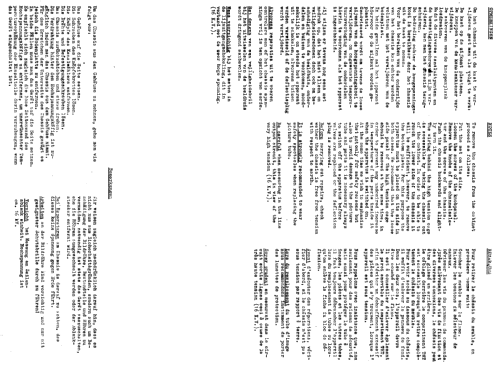

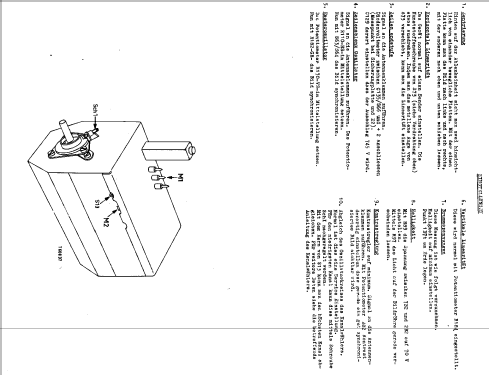

  Schaltplan für Modell NL_17TX291A 3032 KB

Model page created by Michael Schnellmann. See "Data change" for further contributors.



All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Here you find 4976 models, 4168 with images and 3322 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
