19RL360/00R

19RL360/00R; Philips Italy; (ID = 1504690) Radio

19RL360/00R; Philips Italy; (ID = 1504691) Radio

19RL360/00R; Philips Italy; (ID = 1504692) Radio

19RL360/00R; Philips Italy; (ID = 1504693) Radio

19RL360/00R; Philips Italy; (ID = 1504694) Radio

19RL360/00R; Philips Italy; (ID = 1504695) Radio
19RL360/00R; Philips Italy; (ID = 1609924) Radio 19RL360/00R; Philips Italy; (ID = 1609921) Radio
19RL360/00R; Philips Italy; (ID = 1609922) Radio 19RL360/00R; Philips Italy; (ID = 1609925) Radio
19RL360/00R; Philips Italy; (ID = 1609926) Radio 19RL360/00R; Philips Italy; (ID = 1609929) Radio
19RL360/00R; Philips Italy; (ID = 1609932) Radio 19RL360/00R; Philips Italy; (ID = 1813544) Radio
19RL360/00R; Philips Italy; (ID = 1813545) Radio 19RL360/00R; Philips Italy; (ID = 1813546) Radio
Use red slider bar for more.
19RL360/00R; Philips Italy; (ID = 1609924) Radio
Philips Italy;: 19RL360/00R [Radio] ID = 1609924 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 19RL360/00R, Philips Italy; Milano (MI)

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1968 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: AF117 AF117 AF117 AC127 AC128 AC127 AC128 AC128 AA119
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / Size "D" 4 x 1,5 Volt

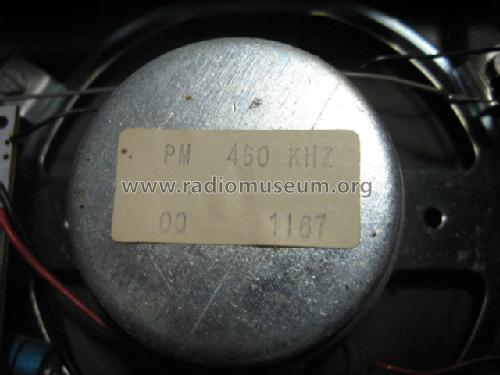

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.35 W (unknown quality)
from Radiomuseum.org Model: 19RL360/00R - Philips Italy; Milano MI
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 262 x 132 x 63 mm / 10.3 x 5.2 x 2.5 inch
Notes

Gamma d'onda:
OM: 517 - 1635 kHz.

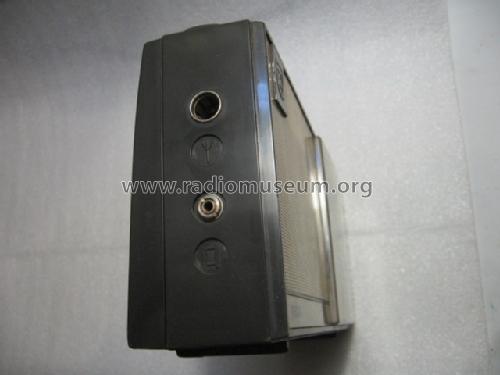

Antenna interna in ferrite, presa per antenna esterna adatta allo spinotto usato abitualmente sulle autovetture.

Jack 3,5 mm per cuffia o altoparlante esterno.

Net weight (2.2 lb = 1 kg) 0.9 kg / 1 lb 15.7 oz (1.982 lb)
Mentioned in -- Original-techn. papers.

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
