• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1943/1944

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72712

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH21 UCH21 UBL21 UY1N

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / see remarks: 110 or 125 or 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org

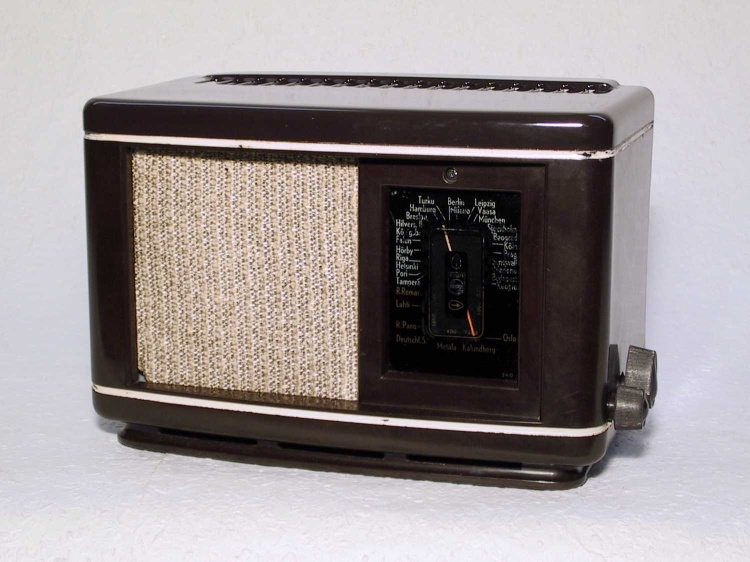

• Model: 207U-04 - Philips; Eindhoven tubes

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 275 x 170 x 138 mm / 10.8 x 6.7 x 5.4 inch

• Notes

• This model employs carousel plugs instead of the usual voltage selector to choose the operating voltage (see schematic).

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

• Mentioned in
• -- Schematic

• Author
• Model page created by Hans-Dieter Haase † 5.2.18. See "Data change" for further contributors.
