209U -19; Philips; Eindhoven (ID = 2272095) Radio

209U -19; Philips; Eindhoven (ID = 2272096) Radio

209U -19; Philips; Eindhoven (ID = 2272097) Radio

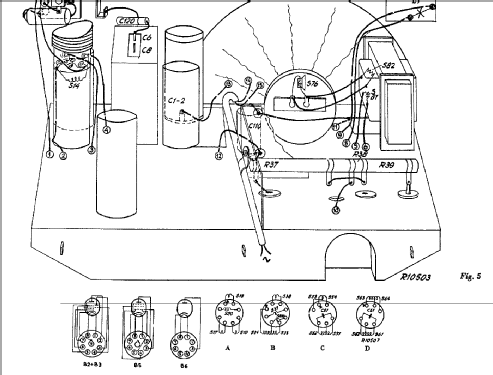

209U -19; Philips; Eindhoven (ID = 2272098) Radio

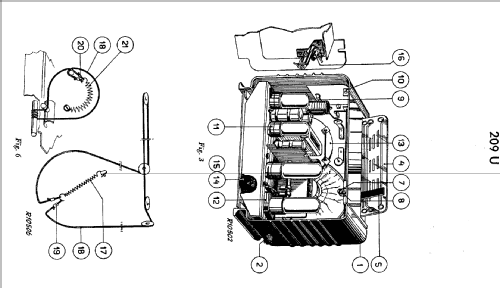

209U -19; Philips; Eindhoven (ID = 2272099) Radio

209U -19; Philips; Eindhoven (ID = 2272100) Radio

209U -19; Philips; Eindhoven (ID = 2272101) Radio

{gbW: "1280", gbH: "960", mW: "500", mH: "375", kb: "152 KB", notes: "For model 209U -19, Philips; Eindhoven (tubes international!); Miniwatt:[br]Front", title: "Philips; Eindhoven 209U -19 from Ivan Notev (1)", ite: "1"} {gbW: "1024", gbH: "904", mW: "424.0", mH: "375", kb: "96 KB", notes: "For model 209U -19, Philips; Eindhoven (tubes international!); Miniwatt:[br]Halbseite mit Knöpfe", title: "Philips; Eindhoven 209U -19 from Ivan Notev (1)", ite: "1"} {gbW: "1280", gbH: "474", mW: "500", mH: "185.0", kb: "51 KB", notes: "For model 209U -19, Philips; Eindhoven (tubes international!); Miniwatt", title: "Philips; Eindhoven 209U -19 from Ivan Notev (1)", ite: "1"} {gbW: "1280", gbH: "626", mW: "500", mH: "244.0", kb: "51 KB", notes: "For model 209U -19, Philips; Eindhoven (tubes international!); Miniwatt:[br]Leider verwischt", title: "Philips; Eindhoven 209U -19 from Ivan Notev (1)", ite: "1"} {gbW: "1280", gbH: "971", mW: "494.0", mH: "375", kb: "166 KB", notes: "For model 209U -19, Philips; Eindhoven (tubes international!); Miniwatt:[br]Rückwandansicht", title: "Philips; Eindhoven 209U -19 from Ivan Notev (1)", ite: "1"} {gbW: "1280", gbH: "762", mW: "500", mH: "297.0", kb: "251 KB", notes: "For model 209U -19, Philips; Eindhoven (tubes international!); Miniwatt:[br]Zeigt Modell und Chassis und Gerätenummer", title: "Philips; Eindhoven 209U -19 from Ivan Notev (1)", ite: "1"} {gbW: "1280", gbH: "753", mW: "500", mH: "294.0", kb: "112 KB", notes: "For model 209U -19, Philips; Eindhoven (tubes international!); Miniwatt", title: "Philips; Eindhoven 209U -19 from Ivan Notev (1)", ite: "1"} {gbW: "1280", gbH: "795", mW: "500", mH: "310.0", kb: "117 KB", notes: "For model 209U -19, Philips; Eindhoven (tubes international!); Miniwatt", title: "Philips; Eindhoven 209U -19 from Ivan Notev (1)", ite: "1"} {gbW: "1280", gbH: "694", mW: "500", mH: "271.0", kb: "132 KB", notes: "For model 209U -19, Philips; Eindhoven (tubes international!); Miniwatt:[br]Originalzustand vor der Restauration", title: "Philips; Eindhoven 209U -19 from Ivan Notev (1)", ite: "1"} {gbW: "1400", gbH: "509", mW: "500", mH: "181.0", kb: "120 KB", notes: "For model 209U -19, Philips; Eindhoven (tubes international!); Miniwatt", title: "Philips; Eindhoven 209U -19 from Justo Puertas-Paule (1)", ite: "1"}

209U -19; Philips; Eindhoven (ID = 2270090) Radio

209U -19; Philips; Eindhoven (ID = 2270087) Radio

209U -19; Philips; Eindhoven (ID = 2270091) Radio

Next pictures

Use red slider bar for more.

Philips; Eindhoven: 209U -19 [Radio] ID = 2270090 1280x960

Select picture or schematic to display from thumbnails on the right and click for download.

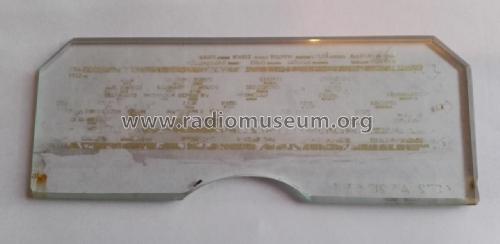

For model 209U -19, Philips; Eindhoven (tubes international!); Miniwatt:
Front

Country:

Netherlands

Manufacturer / Brand:

Philips; Eindhoven (tubes international!); Miniwatt

Year: 1945/1946

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

4: UCH21 UCH21 UBL21 UY1N

Main principle

Superheterodyne (common); ZF/IF 452 kHz; Export model

Wave bands

Broadcast, Long Wave and Short Wave.

Details

Power type and voltage

AC/DC-set / 125/220 Volt

Loudspeaker

Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

Power out

from Radiomuseum.org

Model: 209U -19 - Philips; Eindhoven tubes

Material

Bakelite case

Shape

Tablemodel without push buttons, Mantel/Midget/Compact up to 14

Dimensions (WHD)

285 x 185 x 155 mm / 11.2 x 7.3 x 6.1 inch

Notes

Modell 209U -19 ist eine approbationsfähige Ausführung (mit Sicherheits-Netzsteckeranschluss), Exportmodell für u.A. Schweden.

Nachdem Widerstand R37 kurzgeschlossen ist, kann das Modell mit 110 / 200 V (AC/DC) gespeist werden.

Siehe die Übersicht mit allen 209U-Modellen am Ende dieser Modellseite unter "Dokumenten zu diesem Modell".

Mentioned in

-- Original-techn. papers. (Philips Apparatenblad)

Documents regarding this model

Übersicht Philips 209U-Modelle

48 KB

Model page created by Ivan Notev. See "Data change" for further contributors.

All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Here you find 4981 models, 4169 with images and 3324 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

Collection of Ivan Notev (D)

Collection of Justo Puertas-Paule (E)
