- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1955
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 128550
Original Prospect

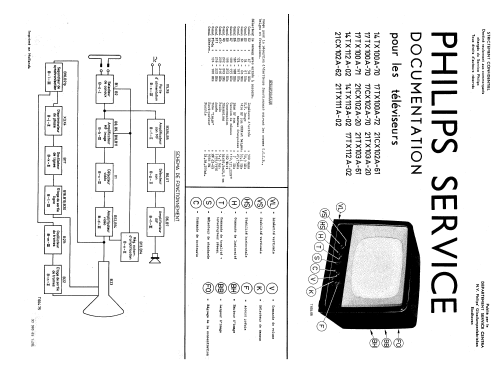

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- PCC84 PCF80 EF80 ECH81 EF80 PABC80 PL82 EF80 EF80 EF80 EF80 PL83 EF80 ECC82 ECL80 ECL80 PL81 PY81 DY86 ECL80 PL82 MW53-20
- Main principle
- Superheterodyne (common); ZF/IF - kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 21TX103A-61 - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 630 x 620 x 500 mm / 24.8 x 24.4 x 19.7 inch
- Notes
- 21" 53cm four standard b/w TV, VHF tuner with CCIR B channels 2 - 11; French channel F8+8a (Paris/Lille) + one reserve channel. Covers CCIR 625, belgium 625, belgium 819 and french 819 transmission standards.
Loudspeaker type 9768FM.

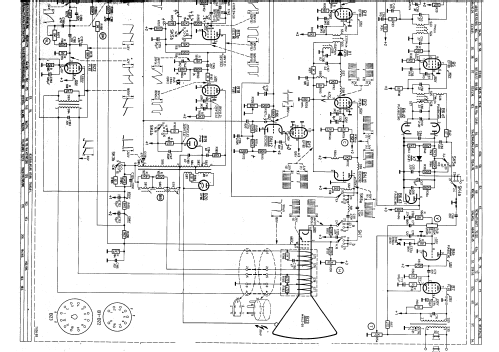

Although schematic designates image tube as B23 there are only 22 valves (B15 missing).
Image tube designated as MW43-69 on schematic is not correct - should be according to model-type since the chassis serves in different models with different image tube sizes.(see tubelist)
- Net weight (2.2 lb = 1 kg)
- 44.6 kg / 98 lb 3.8 oz (98.238 lb)
- Price in first year of sale
- 1,495.00 NLG
- Source of data
- -- Schematic
- Author
- Model page created by a member from A. See "Data change" for further contributors.
