• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1960 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 239931

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• EF184 EF184 PCL82 PL84 PCC88 PCF80 EF85 EF184 EF184 PCF80 PCL84 ECC82 PCF80 PCF80 PL36 PY81 DY87 ECC82 ECH83 PCF80 PF86 PCL82 PCF80 AW53-88

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Radio Control (+Remote Wire etc)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

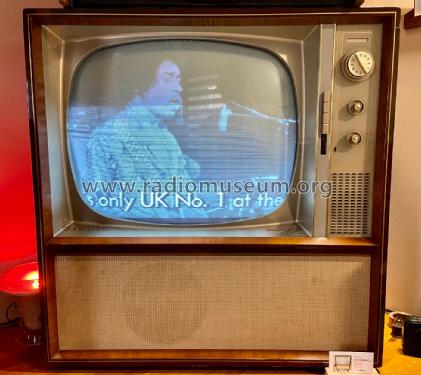

• Model: 21CX285A /01 /06 - Philips; Eindhoven tubes

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• • Transformerless audio output stage.
  • 4 standard receiver:
    • European 625 lines; FM sound; negative video sync.
    • Belgian 625 lines; AM sound; positive video sync.
    • Belgian 819 lines; AM sound; positive video sync.
    • French 819 lines; AM sound; positive video sync.
  • Type of loudspeakers: 1 x AD3800AM; 1 x AD2300CZ.
  • VHF channels: E2-E11; F6; F8a.
  • No UHF.
  • Remote control unit AT6320-03.
  • Submodel /01 has a dark varnished console;
  • Submodel /06 has a light varnished console.

  Same chassis as 21TX285A /01 /06.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Radiomuseum Olen Museum. See "Data change" for further contributors.
