22AR066/70

• Country
• Finland

• Manufacturer / Brand
• Philips Finland - see also Fenno and TeRate

• Year
• 1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 142568

• Picture

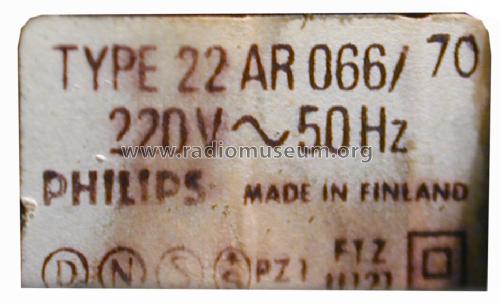

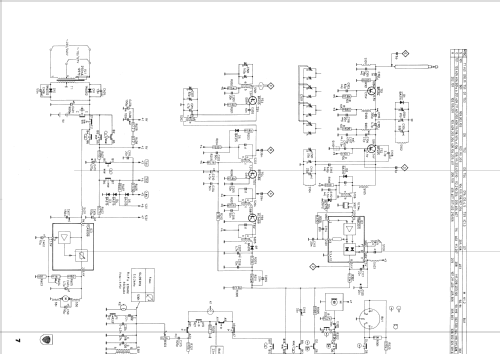

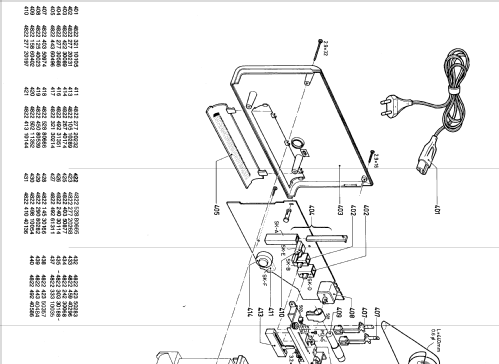

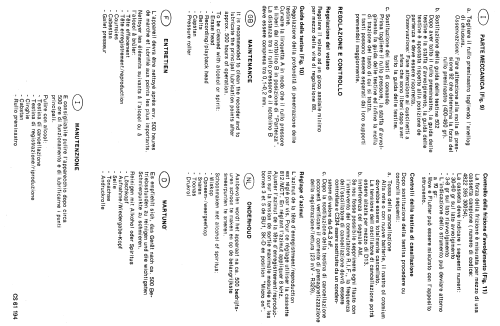

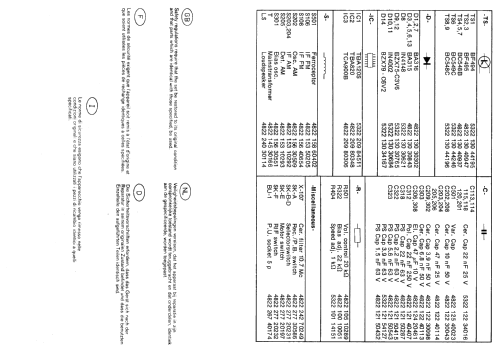

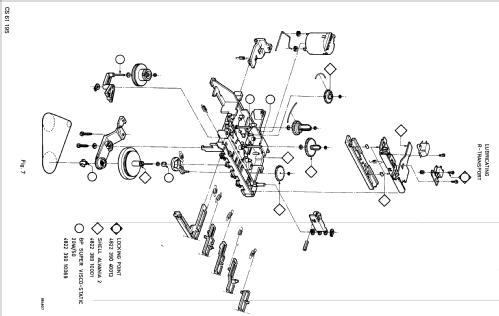

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• BF494 BF495 BC548 TBA120 TBA820 TCA900

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 22AR066/70 - Philips Finland - see also

• Dimensions (WHD)
• 232 x 156 x 66 mm / 9.1 x 6.1 x 2.6 inch

• Notes

• Philips 066 Mono Radio Cassette AM/FM AC/DC, built-in cond.mic. Long Life Head, Made in Finland.

  Battery size: UM2.

• Net weight (2.2 lb = 1 kg)
• 1.4 kg / 3 lb 1.3 oz (3.084 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
