390A/IV (390A)

390A/IV ; Philips Finland - (ID = 977050) Radio 390A/IV ; Philips Finland - (ID = 977051) Radio

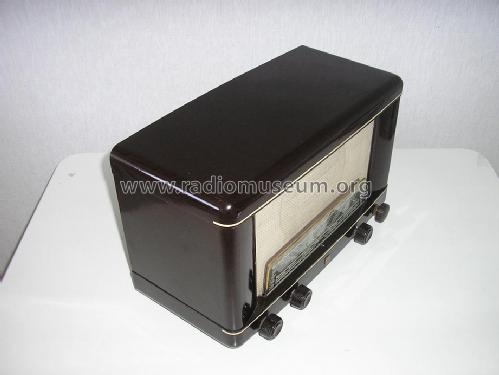

390A/IV ; Philips Finland - (ID = 977052) Radio 390A/IV ; Philips Finland - (ID = 977053) Radio
390A/IV ; Philips Finland - (ID = 977054) Radio 390A/IV ; Philips Finland - (ID = 977055) Radio
Use red slider bar for more.
390A/IV ; Philips Finland - (ID = 977050) Radio
Philips Finland -: 390A/IV [Radio] ID = 977050 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 390A/IV (390A), Philips Finland - see also Fenno and TeRate

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1950 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5:
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 390A/IV - Philips Finland - see also
Material Bakelite or Plastics (type unknown)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 400 x 257 x 205 mm / 15.7 x 10.1 x 8.1 inch
Notes

See also:

All types have the designation 390A without appendix on the nameplate.
The back wall is labeled differently.

Philips 390A;
Please add known differences between model types 390A & suffix I - IV models.

Model page created by a member from A. See "Data change" for further contributors.
