390A/III (390A)

390A/III ; Philips Finland - (ID = 1222825) Radio 390A/III ; Philips Finland - (ID = 1222827) Radio
390A/III ; Philips Finland - (ID = 1222831) Radio 390A/III ; Philips Finland - (ID = 1222834) Radio
390A/III ; Philips Finland - (ID = 1222837) Radio 390A/III ; Philips Finland - (ID = 1222841) Radio
390A/III ; Philips Finland - (ID = 1222844) Radio
Use red slider bar for more.

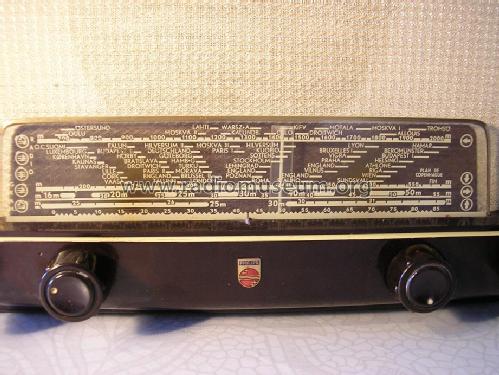

390A/III ; Philips Finland - (ID = 1222825) Radio
Philips Finland -: 390A/III [Radio] ID = 1222825 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 390A/III (390A), Philips Finland - see also Fenno and TeRate

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1950 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EAF42 EBC41 EL41 AZ41
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker -Loudspeaker incorporated, but system not known.
Power out
from Radiomuseum.org Model: 390A/III - Philips Finland - see also
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 400 x 260 x 205 mm / 15.7 x 10.2 x 8.1 inch
Notes

See also:

All types have the designation 390A without appendix on the nameplate.
The back wall is labeled differently.

Dial lamps: 2x 8045D-38

Model page created by Timo Rantasaari. See "Data change" for further contributors.



All listed radios etc. from Philips Finland - see also Fenno and TeRate
Here you find 159 models, 149 with images and 38 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
