• Country
• Canada

• Manufacturer / Brand
• Philips Canada

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 183494

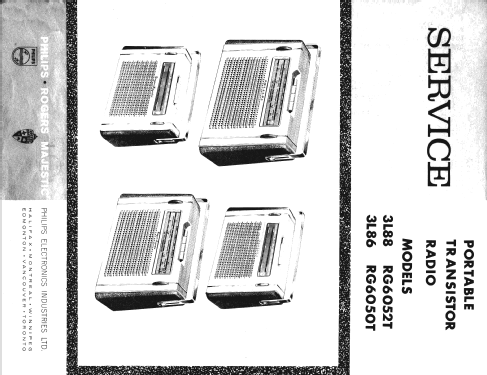

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC170 OC45 OC45 OC71 OC71 OC72 OC72

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Various materials

• from Radiomuseum.org

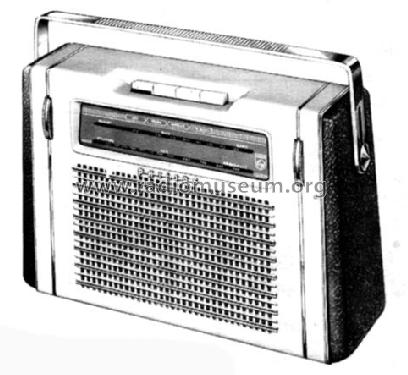

• Model: 3L86 - Philips Canada

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 10.33 x 6.66 x 3.25 inch / 262 x 169 x 83 mm

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Jose Casas-Avalos. See "Data change" for further contributors.

• Other Models

• Here you find 162 models, 90 with images and 138 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
