448AG

448AG; Philips - Schweiz (ID = 19408) Radio

448AG; Philips - Schweiz (ID = 19409) Radio
448AG; Philips - Schweiz (ID = 1373987) Radio 448AG; Philips - Schweiz (ID = 1373988) Radio
448AG; Philips - Schweiz (ID = 1373991) Radio 448AG; Philips - Schweiz (ID = 1373992) Radio
448AG; Philips - Schweiz (ID = 1048805) Radio 448AG; Philips - Schweiz (ID = 1048806) Radio
448AG; Philips - Schweiz (ID = 1373986) Radio 448AG; Philips - Schweiz (ID = 1373989) Radio
448AG; Philips - Schweiz (ID = 1373990) Radio 448AG; Philips - Schweiz (ID = 1373993) Radio
Use red slider bar for more.
448AG; Philips - Schweiz (ID = 1373987) Radio
Philips - Schweiz: 448AG [Radio] ID = 1373987 933x680
Select picture or schematic to display from thumbnails on the right and click for download.
For model 448AG, Philips - Schweiz:
By courtesy of member W. Fague, Pully, Switzerland.

Country:  Switzerland
Manufacturer / Brand:  Philips - Schweiz
Year: 1942/1943 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH21 EF22 EF22 EBL21 EM4 AZ1
Main principle Superheterodyne (common); ZF/IF 473 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: 448AG - Philips - Schweiz
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 606 x 390 x 355 mm / 23.9 x 15.4 x 14 inch
Notes

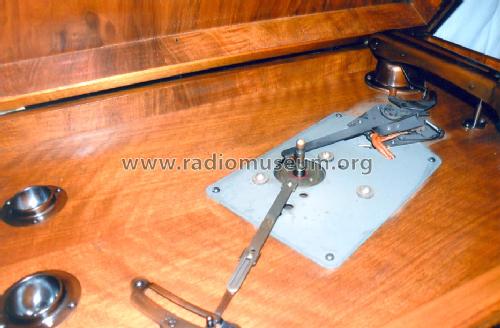

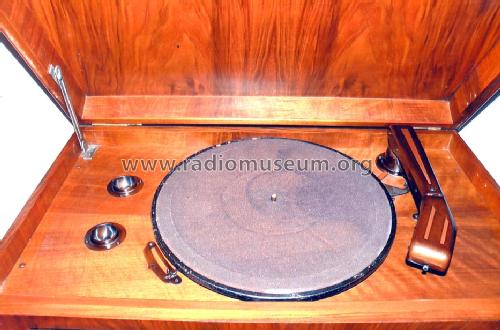

Radio équipé d'un tourne disques de marque THORENS.

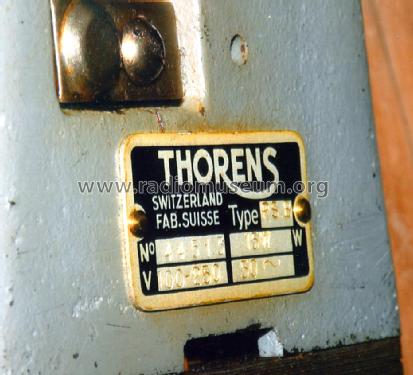

Thorens RS-B
100V à 250V alternatif. Consumption: 15 W.

Net weight (2.2 lb = 1 kg) 19.350 kg / 42 lb 9.9 oz (42.621 lb)
Price in first year of sale 695.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
