44-A

44-A; Philips Ibérica, (ID = 2430883) Radio

44-A; Philips Ibérica, (ID = 2430884) Radio

44-A; Philips Ibérica, (ID = 2430885) Radio

44-A; Philips Ibérica, (ID = 2430886) Radio
44-A; Philips Ibérica, (ID = 940190) Radio 44-A; Philips Ibérica, (ID = 940193) Radio
44-A; Philips Ibérica, (ID = 940191) Radio 44-A; Philips Ibérica, (ID = 940194) Radio
44-A; Philips Ibérica, (ID = 756595) Radio 44-A; Philips Ibérica, (ID = 943387) Radio
44-A; Philips Ibérica, (ID = 1364336) Radio 44-A; Philips Ibérica, (ID = 2131090) Radio
44-A; Philips Ibérica, (ID = 2131091) Radio 44-A; Philips Ibérica, (ID = 2131092) Radio
Use red slider bar for more.

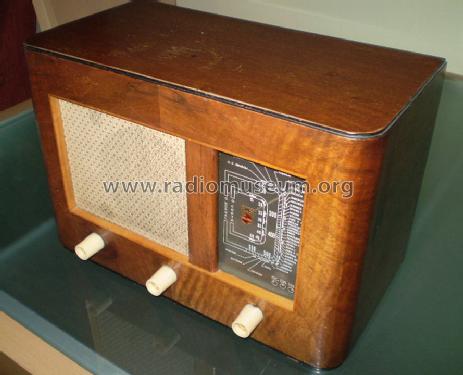

44-A; Philips Ibérica, (ID = 940190) Radio
Philips Ibérica,: 44-A [Radio] ID = 940190 890x720
Select picture or schematic to display from thumbnails on the right and click for download.
For model 44-A, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona:
De la colección de Puri Bullón Guillén

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona
Year: 1940 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 EF9 EBL1 AZ1
Main principle Superheterodyne (common); ZF/IF 470 kHz; 1 AF stage(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 44-A - Philips Ibérica, COPRESA,
Notes Alimentación con autotransformador
Mains throught autotransformer.

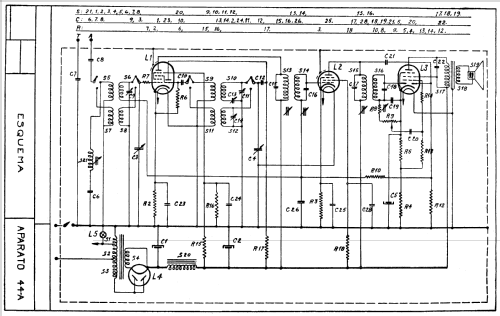

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
