456A

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7351

• • Brand: Deutsche Philips-Ges.

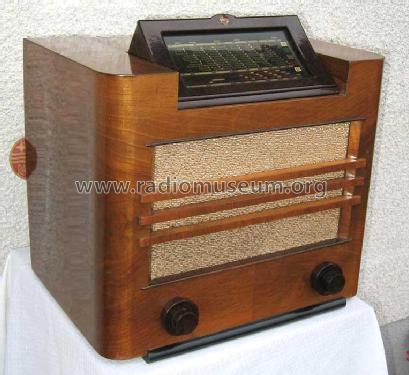

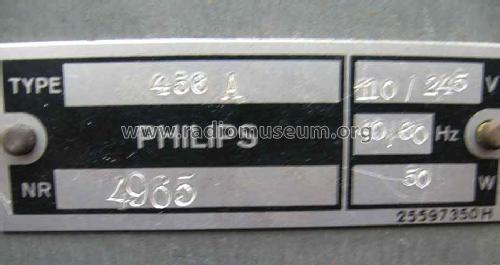

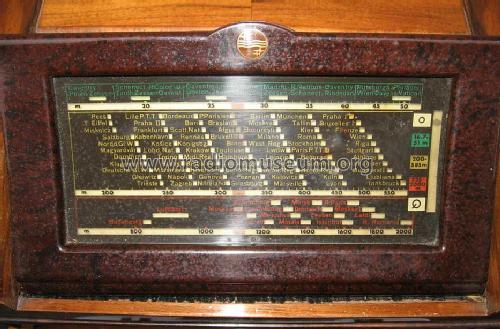

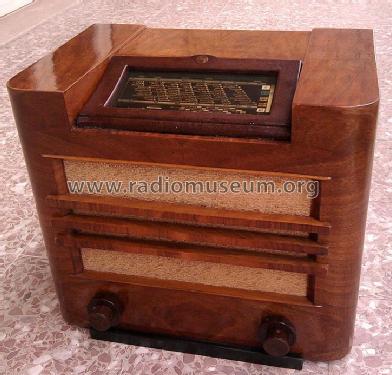

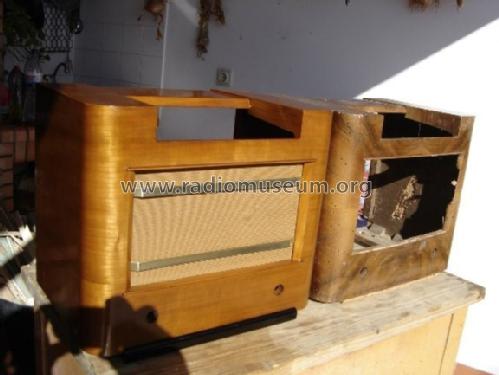

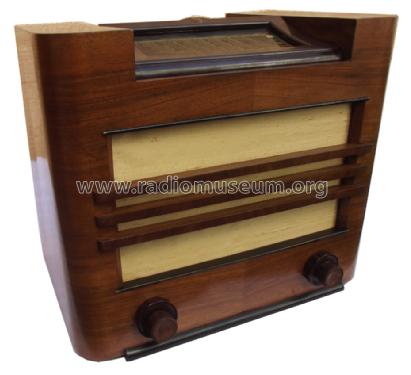

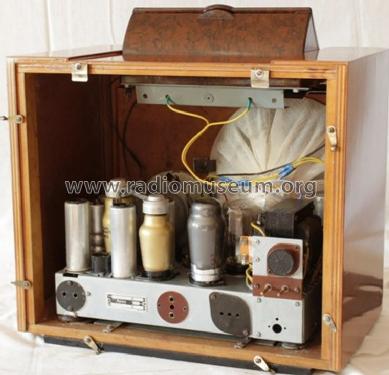

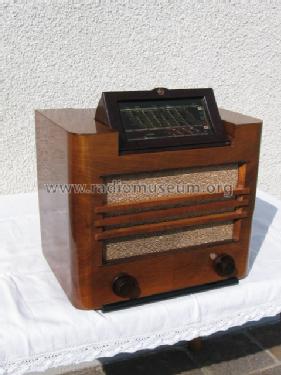

• Picture
• Schematics

Previous Next

Previous Next

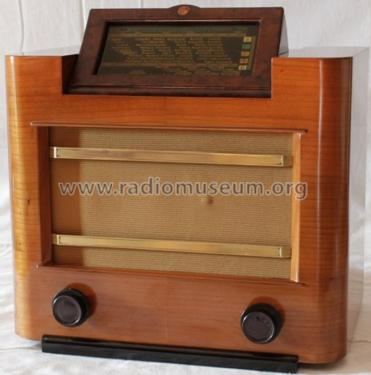

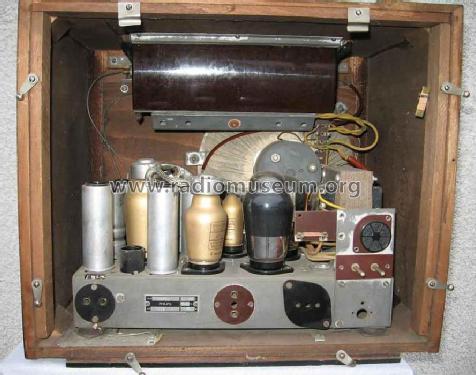

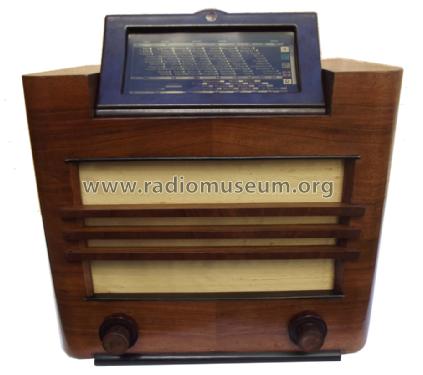

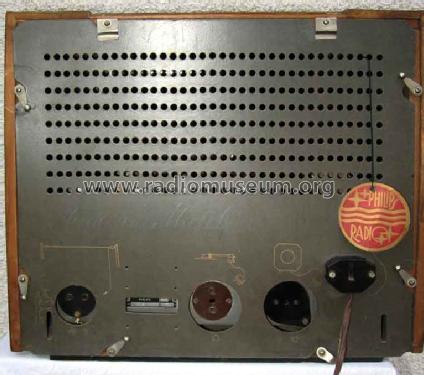

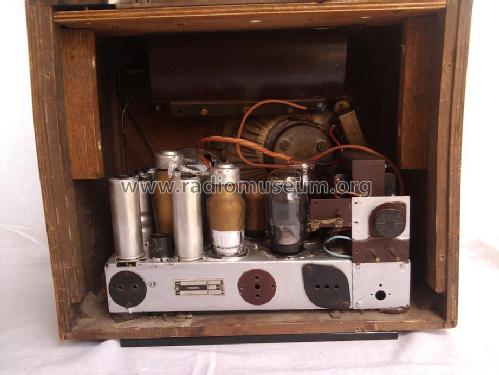

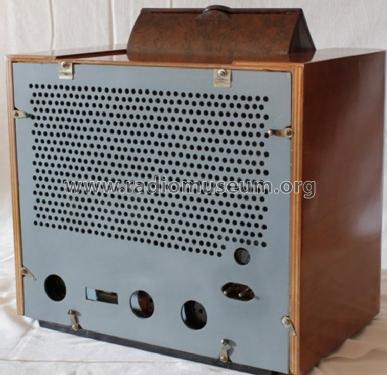

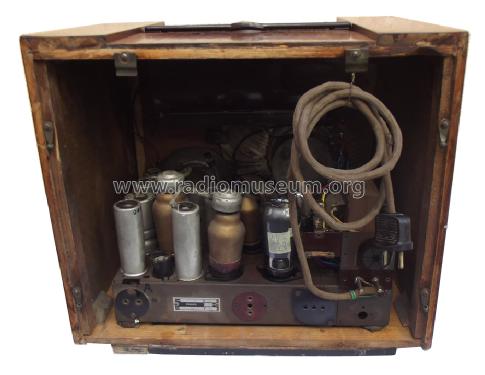

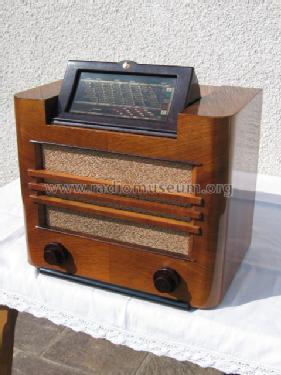

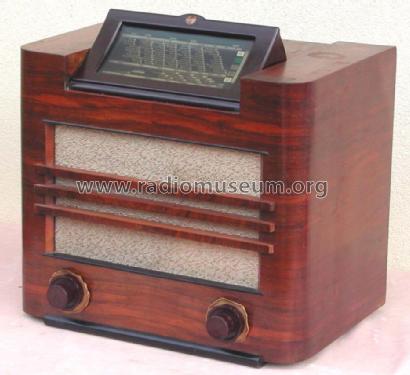

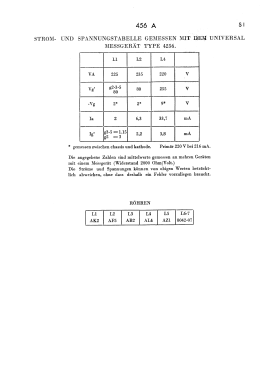

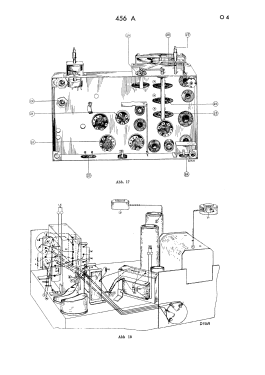

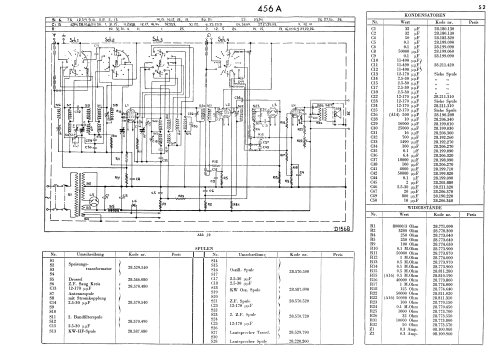

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

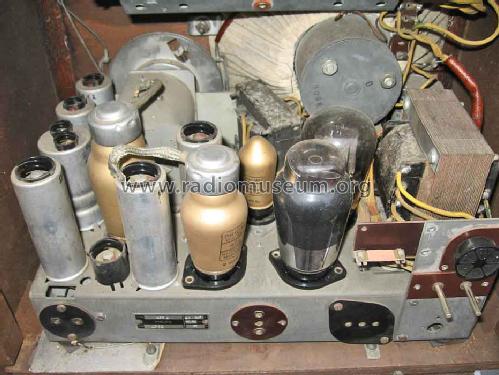

• Valves / Tubes
• AK2 AF3 AB2 AL4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 456A - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 330 x 270 mm / 15.7 x 13 x 10.6 inch

• Notes

• Klappskala.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + FS-Bestückungstabellen

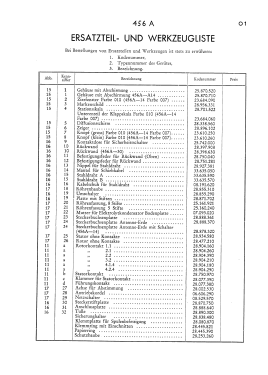

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 2542 models, 2254 with images and 1563 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
