Ouverture 461A
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 26894
Collection Henk Beens (NL)

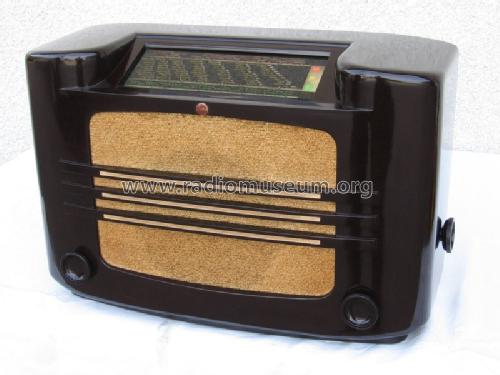

Philips Type 461A
Bild von Alois Steiner.

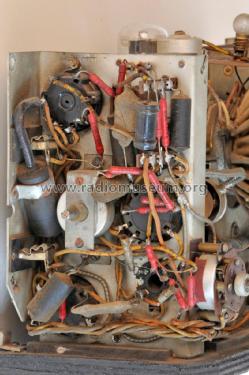

Philips Type 461A (Innenansicht)
Unrestaurierter Zustand wie vorgefunden.
Philips Type 461A
Philips 461A (Rückansicht)
Bild von Alois Steiner.
Collection Henk Beens (NL)
Collection Henk Beens (NL)
Collection Henk Beens (NL)
Collection Henk Beens (NL)
Collection Henk Beens (NL)
Collection Henk Beens (NL)
Collection Henk Beens (NL)
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 128 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Ouverture 461A - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 505 x 325 x 180 mm / 19.9 x 12.8 x 7.1 inch
- Notes
- 118 kHz ZF bei Ausf. 461A-29 und -32 . Dial lamp: 8042D (4V/0,5A).
- Net weight (2.2 lb = 1 kg)
- 9.8 kg / 21 lb 9.4 oz (21.586 lb)
- Price in first year of sale
- 99.00 FL
- Source of data
- Overzicht v.de toe te p PHILIPS
- Mentioned in
- Technisch- Commercieel - Radio Vademecum Staleman
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
- Other Models
-
Here you find 5233 models, 4365 with images and 3445 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Collections
The model Ouverture is part of the collections of the following members.
Museums
The model Ouverture can be seen in the following museums.
Forum contributions about this model: Philips; Eindhoven: Ouverture 461A
Threads: 1 | Posts: 4
Das das von mir erworbene Philips Radio 461A keinerlei Namen wie Ouverture oder Menuetto hat
fällt es mir schwer eine genaue Zuordnung herzustellen. Wer kann mir helfen ?
Die Bilder als Anlage.
Vielen Dank schon jetzt.
Jürgen Bauch
Attachments
- Front db (26 KB)

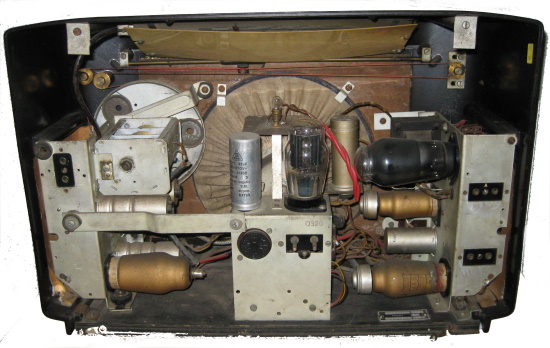

- Innen rm (96 KB)
- Typenschild rm (58 KB)
- Typenbezeichnung Rueckwand rm (88 KB)
- Rueckwand rm (116 KB)
Jürgen Bauch, 29.Apr.09
