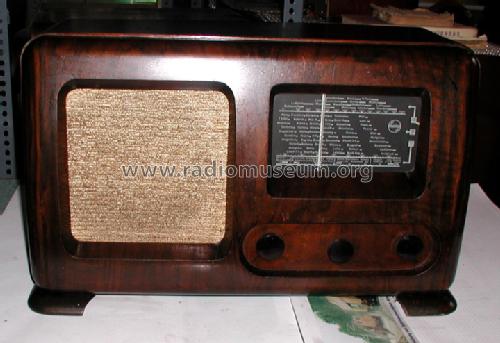

461A-30; Philips Radios - (ID = 539225) Radio 461A-30; Philips Radios - (ID = 1060193) Radio

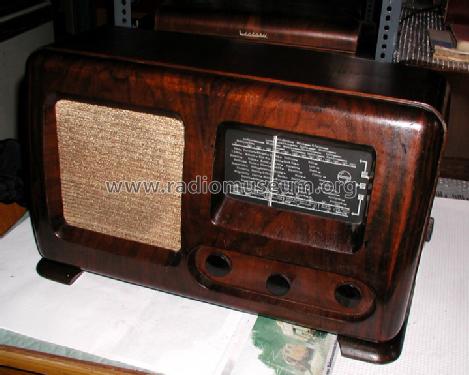

461A-30; Philips Radios - (ID = 1060194) Radio 461A-30; Philips Radios - (ID = 1060196) Radio
Use red slider bar for more.
461A-30; Philips Radios - (ID = 539219) Radio
Philips Radios -: 461A-30 [Radio] ID = 539219 408x265
Select picture or schematic to display from thumbnails on the right and click for download.
For model 461A-30 Holzkassette, Philips Radios - Deutschland:
D_Philips_461A-30 Holzk_Front.jpg

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1937 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: EK2 EF5 EBC3 EL3 AZ1
Main principle Superheterodyne (common); ZF/IF 129 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 23 cm = 9.1 inch
Power out
from Radiomuseum.org Model: 461A-30 [Holzkassette] - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 530 x 335 x 200 mm / 20.9 x 13.2 x 7.9 inch

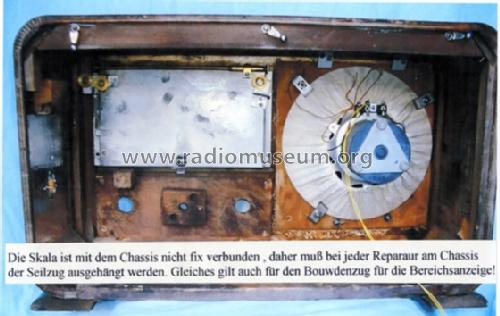

Notes Bei einer Reparatur am Chassis muß der Seilzug ausgehängt werden. Auch der Bowdenzug für den Wellenbereich muß abgeschlossen werden.
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)

Model page created by Hans Schuchter. See "Data change" for further contributors.



All listed radios etc. from Philips Radios - Deutschland
Here you find 2506 models, 2225 with images and 1516 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips Radios -: 461A-30
Threads: 1 | Posts: 2
Hits: 1665     Replies: 1
philips: 461A-30
Francisc VISKY
19.Nov.09
  1



Can somebody explain how it is possible to have together the A series and the E series (except for AZ1) in this model?
Wolfgang Bauer
20.Nov.09
  2

Hallo Mr. Visky,

the entry of the tubes have been my fault. It must of course be called EK2. Thank you for your attention.

Regards WB.
