• Country
• Switzerland

• Manufacturer / Brand
• Philips - Schweiz

• Year
• 1942/1943

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 13331

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH21 EF22 EF22 EBL21 EM4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Details
• Wired Wireless Receiver(AF only)

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org

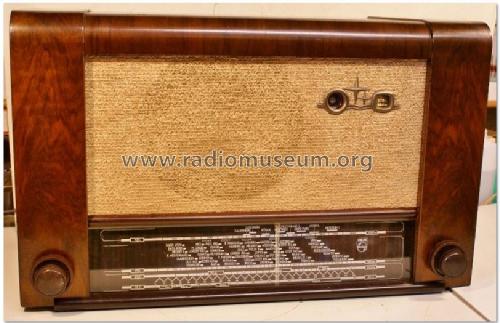

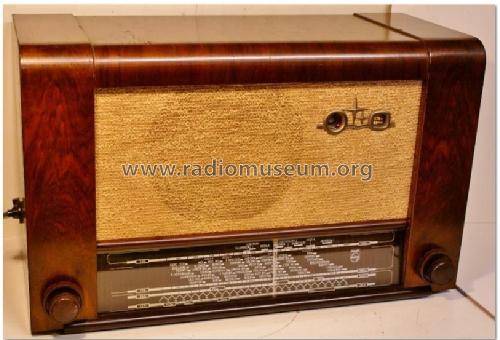

• Model: 475AT - Philips - Schweiz

• Dimensions (WHD)
• 570 x 350 x 235 mm / 22.4 x 13.8 x 9.3 inch

• Notes
• Zusätzlich 5 Einstellmarken für HF-TR auf der LW-Skala.

• Net weight (2.2 lb = 1 kg)
• 12.3 kg / 27 lb 1.5 oz (27.093 lb)

• Price in first year of sale
• 600.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Thali-Schemasammlung und Tungsram-Röhrenbestückung.
