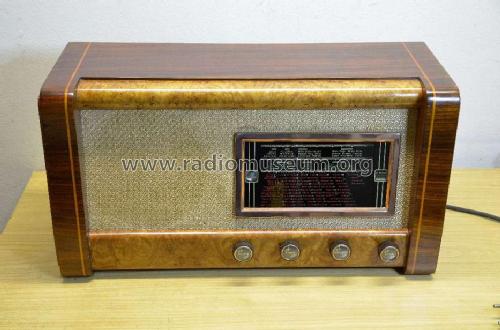

476; Philips Italy; (ID = 1127702) Radio 476; Philips Italy; (ID = 1416397) Radio
Use red slider bar for more.
476; Philips Italy; (ID = 1127706) Radio
Philips Italy;: 476 [Radio] ID = 1127706 933x713
Select picture or schematic to display from thumbnails on the right and click for download.
For model 476, Philips Italy; Milano (MI)

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner

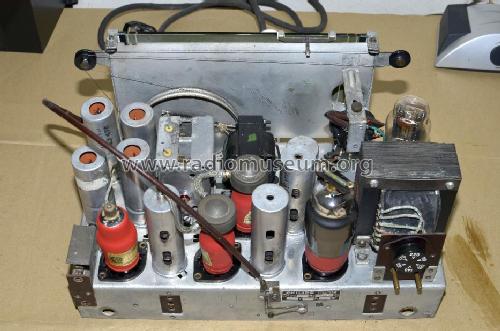

Valves / Tubes 6: ECH3 EF9 EF9 EBL1 EM1 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz

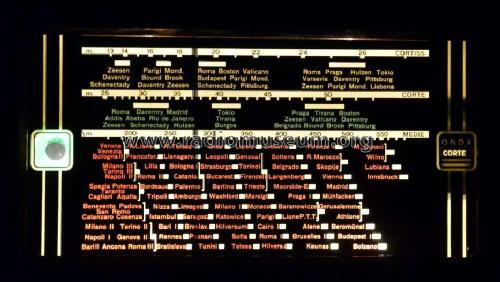

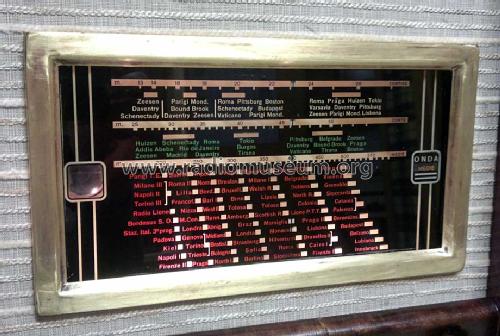

Wave bands Broadcast plus 2 Short Wave bands.
Details

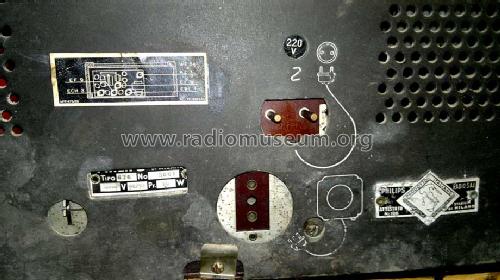

Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 476 - Philips Italy; Milano MI
Material Wooden case

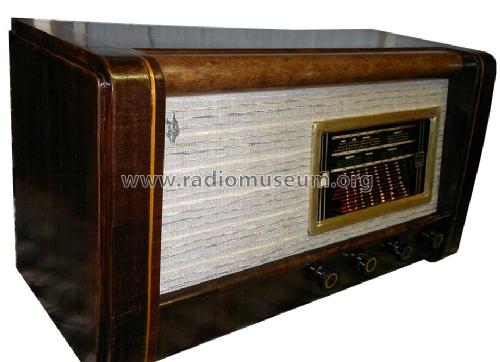

Shape Tablemodel, low profile (big size).
Notes Gamme d'onda: medie, corte, cortissime
Source of data Guida Pratica Antique Radio IV (2001)

Model page created by Carlo Gerli. See "Data change" for further contributors.



All listed radios etc. from Philips Italy; Milano (MI)
Here you find 344 models, 283 with images and 222 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
